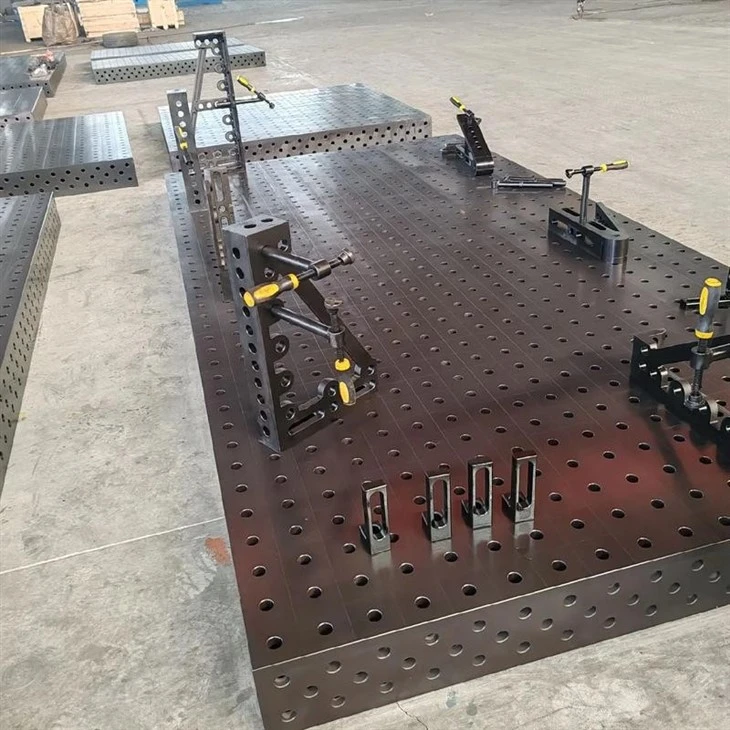

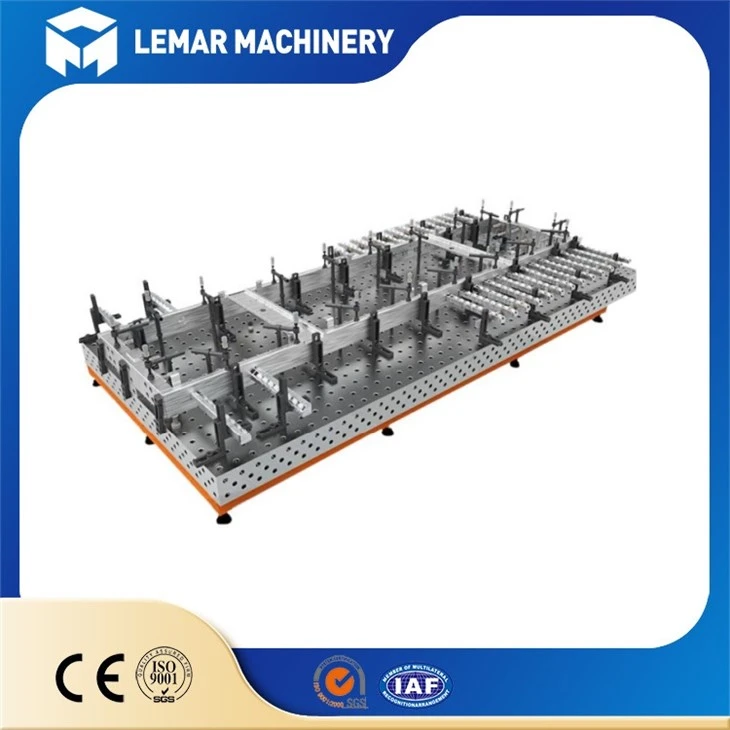

Modular 3D Vuam Systems
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
Khoom Description
Modular 3D Vuam Systems yog cov cuab yeej tseem ceeb rau kev vuam nyob rau hauv lub sijhawm ntawm kev tsim khoom yooj yim. Centered ntawm modularization, siab precision thiab ceev changeover, nws kiag li overturns cov tsoos vuam fixture hom, ho pab tau ntau lawm efficiency, txo nqi thiab kom zoo. Nws yog qhov kev daws teeb meem zoo tshaj plaws rau kev lag luam xws li tsheb, kev tsim kho tshuab thiab kev tsheb nqaj hlau thauj mus los kom ua tiav ntau- ntau yam, kho thiab siv vuam ntau lawm.
Loj lag luam nplai
dav siv technology
siab -cov kev pabcuam zoo
Khoom Series
D16 series
Qhov taub (D): Φ16mm (Kev kam rau siab φ16.065 - φ16.149mm)
Qhov siab: 50 ± 0.05mm
Daim phiaj kab: 50 × 50mm
Qhov tseeb qhov tseeb: ± 0.05mm
Sab Qhov siab: 100mm / 150mm
Flatness: Tsawg dua lossis sib npaug li 0.1mm / m
Perpendicularity: 0.05mm / 200mm
Nto Hardness: HRC45 (tom qab kho nitriding)
Nto Roughness: Ra3.2μm
D28 series
Aperture (D): Φ28mm (Kev kam rau siab φ28.065 - φ28.149mm)
Qhov sib nrug: 100 ± 0.05mm
Daim phiaj kab: 100 × 100mm
Qhov tseeb qhov tseeb: ± 0.05mm
Sab Qhov siab: 200mm
Flatness: Tsawg dua lossis sib npaug li 0.1mm / m
Perpendicularity: 0.05mm / 200mm
Nto Hardness: HRC42-52 (tom qab kev kho nitriding)
Nto Roughness: Ra3.2μm
Modularization thiab scalability muaj peev xwm
Flexibility heev
Tsis tas yuav tsim cov khoom siv tshwj xeeb. Nws yuav siv sij hawm 15 mus rau 30 feeb los ua kom tiav qhov kev hloov pauv ntau lawm (cov txheej txheem ib txwm siv sijhawm 4 mus rau 8 teev), haum rau ntau- ntau yam thiab me -batch ntau lawm.
Cov khoom siv sib xyaw ua ke yog 100% universal thiab rov siv tau, txo cov nqi sib tw thiab cov khoom muag.
Ultra{0}}siab precision
Lub qhov system qhov tseeb qhov tseeb yog ** ± 0.05mm **, thiab qhov rov ua dua yog ** ± 0.1mm **, kom ntseeg tau qhov sib xws ntawm vuam qhov loj thiab qhov zoo ntawm cov vuam seam.
Nws zoo tswj vuam deformation thiab txo cov txheej txheem kho tom ntej.
Ntau lawm
Kev nrawm nrawm, ntau- chaw nres tsheb ua haujlwm sib luag, kev ua haujlwm ntau lawm nce 300%+.
Tau tshaj cov neeg hlau vuam thiab cov kab ntau lawm, ua kom tsis muaj neeg siv / qis- tus kheej ntau lawm.
Durable thiab ntseeg tau
Cov khoom siv hlau cam khwb cia yog cua sov-tiv taus, tiv thaiv- vuam slag, thiab hnav- tiv taus, nrog lub neej ua haujlwm ntawm 10 xyoo +.
Modular tsim, kho yooj yim, thiab hloov tau yooj yim ntawm cov khoom.
Core technical nta thiab qhov zoo
Tus txheej txheem platform muaj qhov tso qhov sib npaug sib npaug ntawm txhua tsib sab, tso cai rau kev sib txuas tsis sib haum ntawm ntau chav nyob los tsim ib lub vuam loj ua haujlwm.
Tag nrho cov khoom siv yog tus qauv thiab thoob ntiaj teb: ceev tso tus pins, clamps, lub kaum ntse ntse ntsuas, txhawb nqa blocks, U-puab clamps, ceev xauv, thiab lwm yam.
Lawv tuaj yeem sib xyaw ua ke hauv:
- Ib leeg workstation vuam lub rooj zaum
- Multi-workstation los ua ke kab vuam lub rooj zaum
- Robot vuam workstation puag
- Ua haujlwm tshuaj xyuas platform, sib dhos platform
Hloov hom tsuas yog yuav tsum muaj kev sib txuas ntawm cov khoom sib txuas, tsis tas yuav rov ua dua -tsim cov cuab yeej ua haujlwm tshwj xeeb.
Kev tiv thaiv ib puag ncig thiab kev saib xyuas
Cov khoom cam khwb cia hlau yog recyclable thiab ua raws li kev tiv thaiv ib puag ncig hauv Tebchaws Europe thiab Asmeskas.
Qhov saum npoo muaj xeb- pov thawj txheej uas yog ib puag ncig tus phooj ywg thiab tsis muaj ntxhiab tsw.
Kev kho yog yooj yim: tsis tu ncua tshem tawm ntawm vuam slag thiab ib qho me me ntawm kev tiv thaiv xeb yog txaus, uas yuav luag tsis tas yuav kho.
Lub fixture hnav tuaj yeem hloov tau nyias, tsis tas yuav tsum tau muab pov tseg tag nrho.
Common xaiv configurations
- Phau ntawv fixture cov khoom siv / Pneumatic clamping tivthaiv
- Txhawb ob txhais ceg, mobile brackets, leveling taw
- Tool txee, slag tub rau khoom, teeb pom kev zoo
- Anti-static, hnav-resistant, siab-kub- tiv thaiv nto
- Kev cai loj, kev cai thauj khoom-cov kabmob muaj peev xwm, kev cai suab (D16 / D28)
