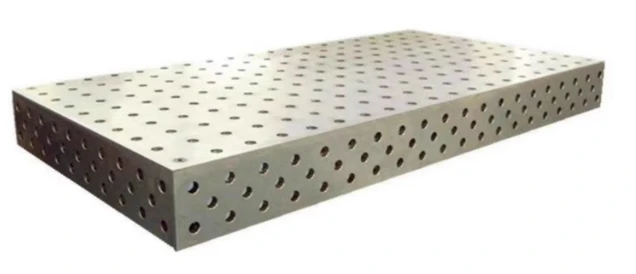

3D precision vuam rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Nto: Nitrided / Li qub
Qauv: 3D
Hom Lub Npe: Lemar
Khoom Taw Qhia
3D precision welding rooj yog lub platform uas tuaj yeem hloov mus rau qhov sib txawv ntawm cov khoom thiab cov khoom siv modularization, thiab tuaj yeem muab tso rau thiab clamped ntawm qhov tsim nyog ceev. Nws yog tsuas yog siv rau cov khoom me me thiab nruab nrab - vuam cov khoom uas yog tus qauv thiab muaj cov kev cai nruj. Nws yog dav siv nyob rau hauv kev sib dhos kab ua haujlwm thiab haum rau ntau yam vuam neeg hlau ua haujlwm. Kev ua haujlwm yog yooj yim thiab yooj yim, thiab kev siv yog du.
Khoom specification
D28-Kev tsim khoom precision
① Workbench nto daim phiaj kab specification: 100x100 ± 0.05mm (D28 series); Ib -millimeter scale kab hauv X thiab Y cov lus qhia ntawm txhua qhov ntawm ob sab ntawm qhov chaw ua haujlwm
② Aperture thiab raug: φ28.15 ± 0.03mm (D28 series)
③ Qhov sib nrug: 100 ± 0.03mm (D28 series)
④ Flatness: 0.1 hli / m²
⑤ Verticality: 0.1 hli / 200 hli
⑥ Parallelism: 0.1mm / 1000mm
⑦ Parallelism thiab perpendicularity (nyob ib sab): 0.1 / 1000mm
⑧ Platform nto tiav: 1.6μm
Platform kev txhawb nqa: ceg hom: 2T / m2, ncej txhawb: 3T / m2
Core kom zoo dua
Haum rau kev ua haujlwm hnyav -: Piv nrog rau D16 hom workbench, nws lub qhov loj dua txoj kab uas hla thiab qhov sib nrug, nrog rau cov ntawv tuab dua (kwv yees li 200mm tuab), pab kom nws txhawb nqa cov khoom hnyav dua. Nws yog qhov tsim nyog rau kev vuam thiab kho cov khoom hnyav- cov khoom siv hlau thiab yog cov khoom siv zoo tshaj plaws rau cov khoom hnyav- cov khoom siv hlau ua haujlwm.
Siab ua ke yooj yooj yim: Cov qauv tsim qauv ua rau ntau qhov chaw ua haujlwm sib txuas thiab nthuav dav, ua tau raws li cov kev xav tau vuam ntawm super- cov khoom loj. Thaum ua ke nrog ntau yam khoom siv, nrhiav tus pins thiab lwm yam khoom siv, txoj haujlwm clamping tuaj yeem hloov kho tau yooj yim los ntawm lub rooj qhov system kom ua tau raws li qhov xav tau ntawm vuam txoj haujlwm ntawm cov khoom sib txawv thiab cov lus qhia tshwj xeeb.
Kev saib xyuas yooj yim: Lub nitrided nto tsis tsuas yog ruaj, tab sis kuj txo cov adhesion ntawm vuam slag, ua kom yooj yim los ntxuav. Cov countertop panels ntawm qee cov qauv tuaj yeem raug tshem tawm thiab flipped rau kev siv, ntxiv txo tus nqi hnav thiab tsim kua muag.
Tiv tauj peb
Yog tias koj txaus siab rau 3D precision vuam rooj, koj tuaj yeem tiv tauj peb los ntawm cov txheej txheem hauv qab no.
Peb qhov chaw nyob: 505-1 NO.8 JIEFANG WEST ROAD, LIANGXI DISTRICT, WUXI, Suav teb
Xov tooj:+86 159 952 699 47
