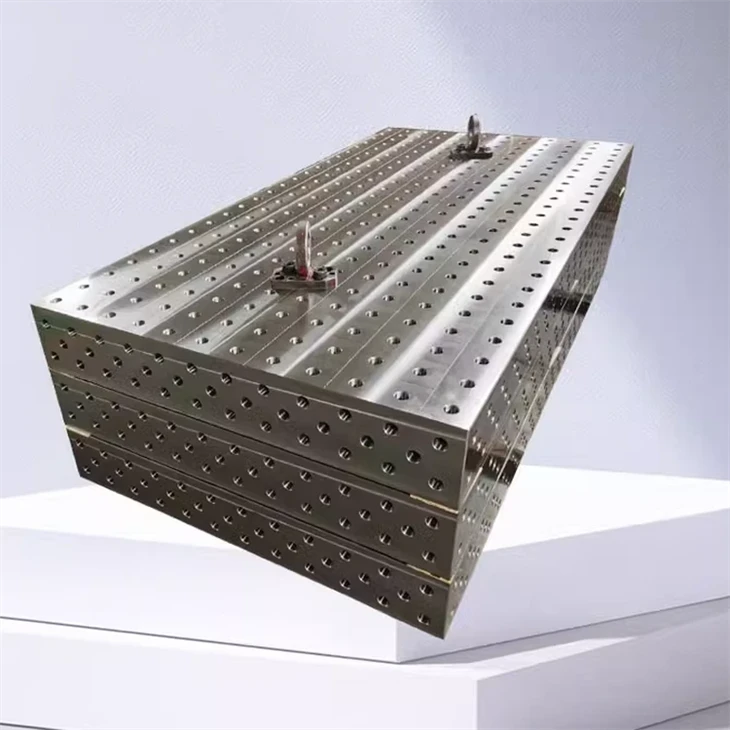

Modular 3D Vuam Rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Nto: Nitrided / Li qub
Qauv: 3D
Hom Lub Npe: Lemar
Khoom Taw Qhia
|

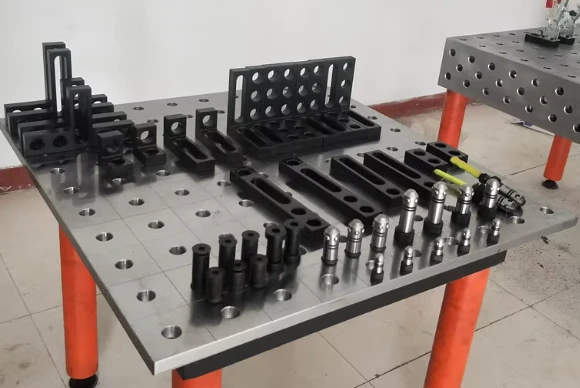

Modular 3D vuam rooj yog cov cuab yeej siv vuam raws li "modular" tsim lub tswv yim - cov tub ntxhais yog tsim los ntawm cov qauv kev sib hloov thiab hloov tau lub rooj saum npoo, kev txhawb nqa modules, qhov chaw thiab clamping modules, uas tuaj yeem hloov kho tau yooj yim ua ke thiab ceev nrooj rov qab zoo li lub tsev thaiv, hloov mus rau qhov kev sib hloov ntawm cov khoom nruab nrab thiab cov khoom siv me me, thiab cov khoom siv me me. rov positioning raug. Nws yog dav siv nyob rau hauv cov teb xws li kev tsim kho tshuab, tsheb tsim, tsheb ciav hlau thauj mus los, aerospace, stainless hlau khoom, thiab cov khoom siv vuam. |
Khoom specification
φ28 series vuam rooj: Lub qhov kam rau ua yog qib d10, thiab lub xauv tus pin txuam lub platform yog h7 qib. Qhov kev ncua deb ntawm qhov chaw ntawm ob qhov nyob ib sab yog 100 ± 0.05mm
φ16 series vuam rooj: Lub qhov kam rau ua yog qib d10, thiab lub xauv tus pin txuam lub platform yog h7 qib. Qhov chaw nruab nrab ntawm ob qhov nyob ib sab yog 50 ± 0.05mm.
Lub workbench txhua yam tuaj nyob rau hauv peb daim ntawv: qhov siab (muab faib ua peb hom) nrog ib tug load - bearing muaj peev xwm ntawm 2t txhua, tsau (thav duab hom) nrog ib tug load- bearing muaj peev xwm ntawm 5t, movable (lifting hom nrog ib tug load- bearing muaj peev xwm ntawm 3t), thiab (swivel type with brakes thiab unibers. 1 t).
Khoom zoo
- Positioning Accuracy ± 0.05mm: Lub ntsiav tshuaj tau dhau los ua qhov tseeb ua raws li kev laus thiab kev kho nitriding. Featuring lub qhov nruj txoj hauj lwm tolerances thiab exceptionally siab repetitive positioning raug, nws ua kom muaj qhov sib xws ntawm txhua qhov ntau lawm.
- Tsawg Deformation, Siab Rigidity: Tsim los ntawm siab- zoo steel lossis cam khwb cia hlau nrog FEM- cov qauv zoo, lub rooj nthuav tawm tsawg kawg deformation nyob rau hauv hnyav loads (tsawg dua 0.5 hli nyob rau hauv ib tug concentrated load ntawm 2 tons). Qhov no ua kom muaj qhov ruaj khov ntawm qhov chaw ua haujlwm tom qab vuam thiab ua rau tus nqi qis dua.
- Unified Reference Datum: Peb cov rooj vuam tuaj yeem ua haujlwm ncaj qha raws li cov ntaub ntawv siv rau kev tshuaj xyuas, kev sib koom ua ke vuam, kho, thiab tshuaj xyuas cov txheej txheem rau hauv ib qho kev ua haujlwm kom txo qis kev nthuav tawm ntawm qhov yuam kev.
Txog Peb
Wuxi Lemar Machinery Equipments Co., Ltd. Yog ib qho kev tsim khoom ntse nrog R&D, tsim.
Wuxi Lemar Welding Equipments Co., Ltd. yog ib qho chaw zoo - paub txog kev lag luam hauv tsev uas tau tsim cov khoom siv hlau, 3D vuam rooj, Modular vuam rooj cov khoom siv, thiab lwm yam khoom siv ua tiav vuam.
Kev cog lus rau kev tsim thiab tsim khoom ntawm ntau yam CNC txiav cov cuab yeej, steel qauv tsim kab, ua tiav cov khoom siv vuam, thiab cov khoom siv txheej.
Kev vam khom cov ntsiab lus siab, thev naus laus zis zoo, thiab kev ua haujlwm zoo heev, lub tuam txhab tau tsim ntau yam - ntau yam thiab ntau - cov khoom lag luam.
Peb cov khoom ua haujlwm siv tshuab, siv tshuab, boilers thiab siab hlab ntsha, steel qauv, cua zog thiab lwm yam lag luam, thiab cov khoom raug xa mus rau teb chaws USA, Canada, Maxico, Poland, Australia, Lub teb chaws Yelemees, Ltalis, Spain, Russia, South East Asia, Middle East, Brazil, South. Africa, Pakistan, Canada, Greece, Is Nrias teb, Nyab Laj, Belarus, Colombia thiab ntau lub tebchaws.
Peb lub tuam txhab tau dhau ISO90001 daim ntawv pov thawj zoo, CE Certificate, ISO14001 ib puag ncig kev pov thawj.
Peb lub tuam txhab ua raws li kev lag luam lub tswv yim ntawm kev mob siab rau, mob siab rau thiab ua kom zoo.
Ua raws li kev xav tau ntawm kev lag luam, tau tsav los ntawm kev tsim kho thev naus laus zis, kev ua lag luam peev raws li txoj kev, kev tswj hwm kev tshawb fawb yog lub hauv paus, mob siab rau kev ua tsaug thiab kev tawm tswv yim, muab cov neeg siv khoom muaj txiaj ntsig - rau- cov kev pabcuam nyiaj txiag, coj cov nyiaj rov qab mus rau cov tswv lag luam thiab cov neeg ua haujlwm, thiab pib tsim khoom niaj hnub.
FAQ
FAQ
Q: Lub sijhawm xa khoom dav dav ntev npaum li cas?
A: Lub sijhawm xa khoom feem ntau yog 15 mus rau 25 hnub txij li hnub tso qhov kev txiav txim.
Q: Piv nrog rau cov khaub ncaws ua haujlwm, cov nqi dab tsi tuaj yeem txuag tau?
A: Tsis tas yuav tsum nqis peev rau kev tsim thiab tsim cov nqi ntawm cov cuab yeej tshwj xeeb. Tsis tas yuav siv nyiaj ntxiv thaum hloov cov qauv khoom. Nyob rau tib lub sijhawm, nws txo cov sij hawm npaj ntau lawm, txhim kho kev tsim khoom zoo, thiab muaj txiaj ntsig zoo tshaj plaws hauv kev siv sijhawm ntev -.
Q: Lub sijhawm lav ntev npaum li cas? Qhov kev pab cuam warranty muaj xws li dab tsi?
A: Lub sijhawm lav feem ntau yog ib xyoos (raws li kev sib tham), thiab qhov kev lav phib xaub suav nrog tsis yog -tib neeg- ua rau muaj teeb meem kev puas tsuaj xws li kev tawg ntawm cov qauv tseem ceeb ntawm lub platform, kev sib txawv ntawm qhov chaw qhov raug, thiab qhov tsis zoo ntawm cov qauv qauv.
Yog tias koj txaus siab rau Modular 3D Vuam Rooj, koj tuaj yeem tiv tauj peb los ntawm cov txheej txheem hauv qab no.
Peb qhov chaw nyob: 505-1 NO.8 JIEFANG WEST ROAD, LIANGXI DISTRICT, WUXI, CHINA
Xov tooj:+86 159 952 699 47
office03@lemarmetal.com
