Tsev / Cov khoom / Modular Vuam Cov Lus / 3D Vuam Rooj / Ntsiab lus

Multi Functional Welding Platform suppliers

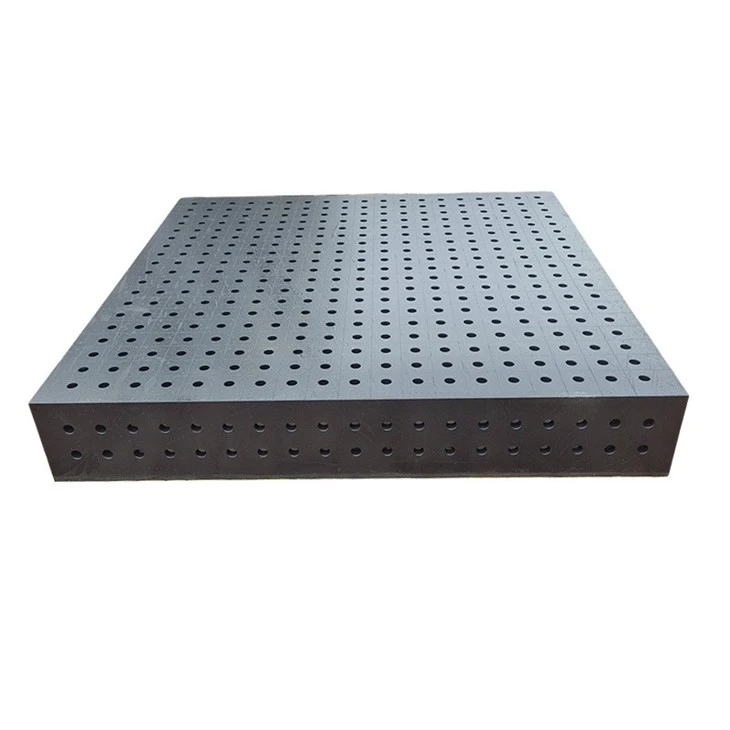

Multi Functional Welding Platform factory

Multi Functional Welding Platform high quality

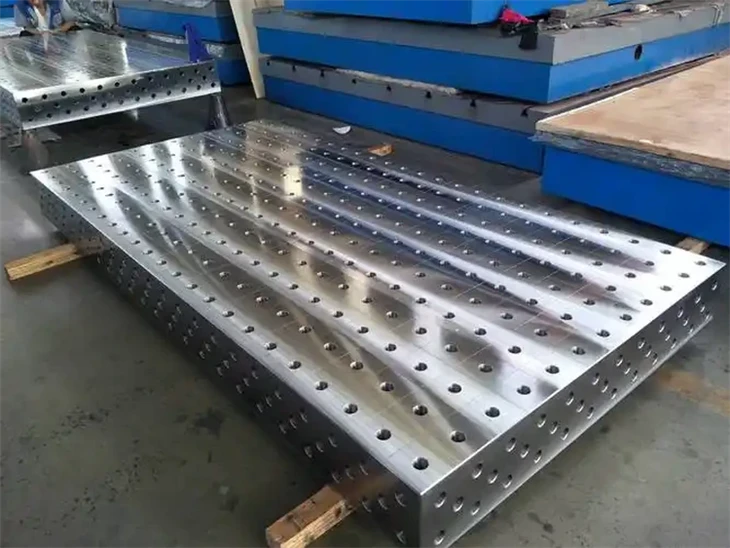

Multi Functional Vuam Platform

Khoom siv: Cam khwb cia hlau
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Nto: Nitrided / Li qub
Qauv: 3D
Hom Lub Npe: Lemar

Xa kev nug

Khoom Taw Qhia

Tsib qhov chaw ua haujlwm ntawm Multi-kev ua haujlwm vuam platform txhua tus muaj qhov nrog cov lus piav qhia mesh ntawm 100mm × 100mm (D28 series) lossis 50mm × 50mm (D16 series). Lub hom phiaj, qhov sib npaug thiab ntsug qhov siab qhov tseeb ntawm nws tsib qhov chaw, nrog rau qhov tseeb ntawm qhov chaw ntawm qhov, tag nrho cov siab heev, kom ntseeg tau tias qhov chaw ntawm lub rooj zaum thiab kev sib xyaw ua ke ntawm cov ntsiav tshuaj thiab lwm cov qauv muaj cov kev siv txaus txaus. Qhov loj ntawm qhov yooj yim countertop tuaj yeem xaiv tau dawb los ntawm 1000mm × 1000mm txog 4000mm × 2000mm. Qhov loj me tshwj xeeb tuaj yeem hloov kho. Yog tias qhov kev xav tau ntawm kev sib xyaw ua ke ntawm cov countertops siab heev, cov lus qhia yuav siv tau los txuas rau lawv.

ib - nres kev daws teeb meem

pab neeg tshaj lij

siab zoo

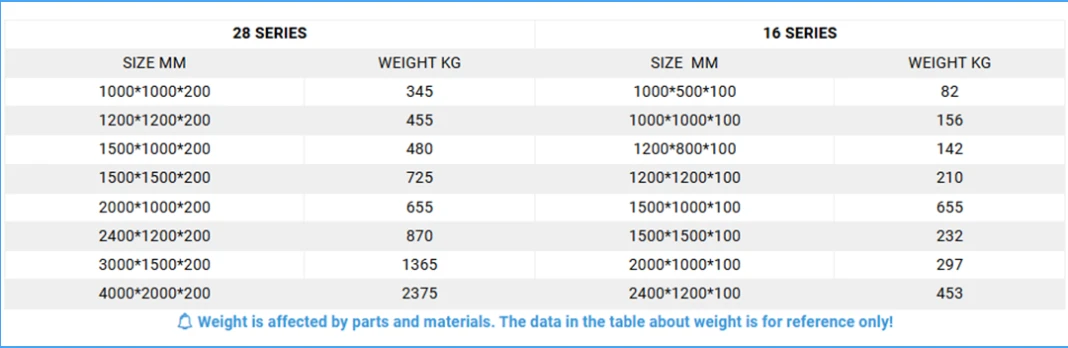

Khoom specification

product-1-1

Hais txog 3D welding rooj, peb muab cov kev pabcuam uas tsis yog- tus qauv tsim. Thov hu rau peb rau qhov zoo tshaj plaws quotes!

Core qauv thiab cov ntaub ntawv

Cov khoom tseem ceeb: Cov khoom siv tseem ceeb tau muab faib ua ob pawg. Ib qho yog siab - lub zog cam khwb cia hlau xws li HT250 / HT300, uas tuaj yeem ua kom lub zog siab thiab ruaj khov ntawm lub platform. Lub hardness tuaj yeem ncav cuag HB170-240, thiab nws tsis yooj yim rau deform tom qab siv ntev -. Lwm hom yog Q345 qis alloy steel, uas yog tsim rau cov xwm txheej uas yuav tsum tau siab dua rau platform toughness. Qee cov qauv tsim los kuj tseem yuav siv cov ntaub ntawv sib xyaw ua ke kom sib npaug ntawm cov kav ntev thiab lub teeb yuag.

Standardized qhov system thiab accessories: Lub platform nto feem ntau yog muab faib nrog cov qauv puag ncig ntawm φ16 lossis φ28mm, thiab qhov sib txawv ntawm qhov sib haum mus rau kab sib chaws ntawm 50mm lossis 100mm. Lub qhov sib nrug ntawm qhov kam rau ua tuaj yeem yog qhov tseeb rau ± 0.03mm. Nyob rau tib lub sijhawm, nws tuaj yeem sib xyaw nrog ntau yam khoom siv xws li U- zoo li lub thawv square, L- zoo li lub thawv square, Lub kaum ntse ntse ntsuas, thiab cov khoom xauv. Nws tuaj yeem txuas tau sai rau lub qhov txoj hauj lwm los ntawm cov pins kom ua tiav qhov chaw hloov tau yooj yim thiab clamping ntawm workpieces. Qee cov qauv kuj txhawb cov khoom siv ntxiv xws li hydraulic nqa lub thawv thiab tilting brackets kom nthuav dav lub kaum sab xis ua haujlwm thiab qhov siab.

Core zoo

Muaj zog ua haujlwm nyuaj

Nws tsis yog tsuas yog siv rau vuam, tab sis kuj tuaj yeem ua tau raws li ntau yam kev xav tau xws li kev kuaj xyuas workpiece, sib dhos, thiab kev debugging. Piv txwv li, hauv kev ua tshuab, nws tuaj yeem ua tsis tau tsuas yog ua kom tiav kev sib dhos thiab vuam ntawm cov ncej- hom workpieces tab sis kuj ncaj qha ua qhov kev soj ntsuam ua ntej ntawm qhov tseeb tom qab vuam ntawm lub platform, tshem tawm qhov xav tau kev hloov pauv ntawm cov khoom ua haujlwm thiab ua kom yooj yim rau kev ua haujlwm.

High adaptability thiab yooj

Los ntawm kev hloov lossis kho qhov chaw thiab cov khoom siv clamping, ib lub platform tuaj yeem hloov kho rau ntau hom haujlwm xws li cov ntawv hlau, cov qauv hlau, thiab lub thawv thav ntawv, thiab tuaj yeem ua tau raws li qhov xav tau ntawm cov khoom siv vuam ntau ntau. Thaum cov qauv khoom hloov pauv, tsis tas yuav kho cov cuab yeej tshwj xeeb dua. Tsuas yog kev sib xyaw ntawm cov khoom siv yuav tsum tau hloov kho.

Durable thiab yooj yim los tswj

Ua los ntawm cam khwb cia hlau los yog hlau alloy, nws tau txais kev kho cua sov kom tshem tawm cov kev ntxhov siab sab hauv, muaj peev xwm tiv taus qhov kub thiab txias thiab hnyav. Nws qhov hnyav feem ntau yog nyob nruab nrab ntawm 500 thiab 3200kg, nrog cov khoom muaj zog -cov kabmob muaj peev xwm. Lub vuam slag ntawm lub platform nto tuaj yeem yooj yim ntxuav los ntawm lub qhov. Thaum cov khoom puas lawm, tsuas yog ib tus neeg yuav tsum tau hloov pauv, thiab tsis tas yuav khawb tag nrho lub tshuab, ua rau cov nqi tu qis.
