4' * 4' Vuam Fixture Table
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Nto: Nitrided / Li qub
Tiv tauj peb rau Quote: Eva(WA:+8615995269947 Evasummer@lemarmetal.com) Hom: 3D
Hom Lub Npe: Lemar
Khoom Description
4'*4' Vuam Fixture Table yog ib qho qauv, siab -precision, ntau- lub hom phiaj ua haujlwm platform ntawm qhov tseem ceeb hauv kev ua haujlwm hlau thiab kev tsim khoom.
Yooj yim muab tso, nws yog ib qho tshwj xeeb uas muaj zog thiab meej platform uas muaj cov qauv kab sib txuas, ua kom vuam, sib dhos, ntsuas, thiab kev tsim kho cov haujlwm uas tsis muaj qhov sib piv, qhov tseeb, thiab kev ua haujlwm zoo.
Peb qhov chaw nyob: 505-1 NO.8 JIEFANG WEST ROAD, LIANGXI DISTRICT, WUXI, CHINA
Xov tooj:+86 159 952 699 47
Evasummer@lemarmetal.com
Khoom Specification
| Feature Qeb | Specifications thiab Description |
|---|---|
| Qhov ntev | Tus txheej txheem "4' × 4' yog hais txog lub ntsiav tshuaj loj ntawm4ft × 4 feet(kwv yees1220mm × 1220 hli). Qhov no yog ib qho ntawm cov kev lag luam loj tshaj plaws; Lwm qhov tshwj xeeb xws li 2' × 4' thiab 4' × 8' kuj muaj. |

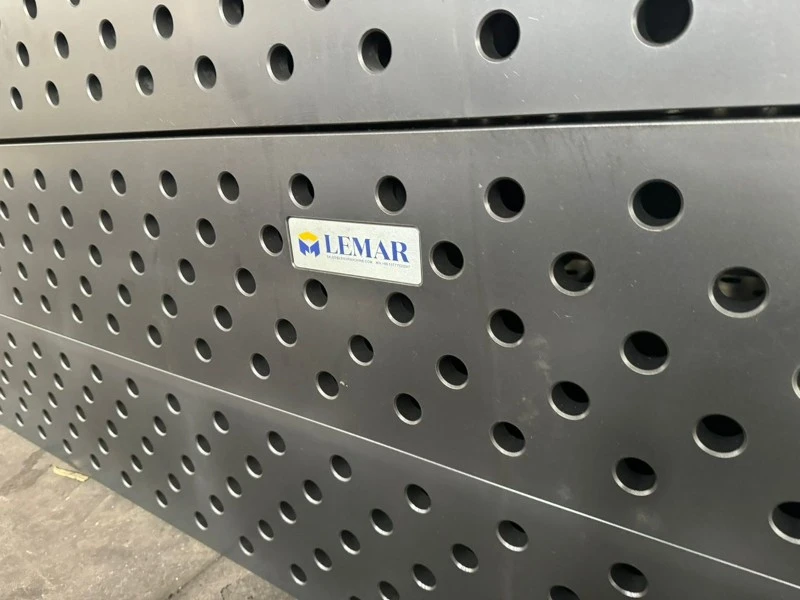

| Tabletop Structure | Lub cev loj: Ua los ntawm siab - lub zog carbon steel lossis cov cuab yeej hlau, dhau musprecision machiningthiabkev nyuaj siab-kev kho moblos xyuas kom meej ntev -lub sij hawm stability thiab tsis kam mus deformation. Grid Qhov System: Qhov no yog qhov tseem ceeb feature. Tag nrho cov ntsiav tshuaj yog populated nrog precision-machined round qhov ntawm tus qauv ncua sij hawm (feem ntau imperial2 nti / 50.8mmlos yog metric50mm / 100 hli). Threaded Qhov: Txhua lub qhov puag ncig muaj cov xov sab hauv ntawm nws lub hauv paus lossis sab (feem ntau imperial5/8"-11 UNClos yog metricM16), tso cai txuas ncaj qha ntawm ntau yam khoom siv. |
Khoom Loj
Cov khoom muaj nuj nqi
Lub luag haujlwm tseem ceeb
--4'*4' Vuam Fixture Table
Qhov no workbench deb tshaj cov pa vuam rooj, ua haujlwm ntau dua li "pob zeb ntawm kev tsim khoom":
Precision Positioning thiab Clamping: Siv cov khoom sib txuas xws li nres, lub kaum sab xis hlau, clamps, caj npab siab, nrhiav tus pins, thiab V- blocks, workpieces tuaj yeem ceev ceev thiab raug ruaj ntseg ntawm txhua txoj haujlwm thiab lub kaum sab xis ntawm lub rooj ua haujlwm.
Repeatable Production: Thaum lub teeb tsa kev teeb tsa tau tsim los rau lub chaw ua haujlwm, tag nrho cov haujlwm ntawm cov khoom tuaj yeem raug kaw los ntawm kev sib koom ua haujlwm (kab thiab kab zauv ntawm qhov). Qhov no ua rau kom rov tsim kho sai ntawm cov khoom siv sib xws rau kev ua haujlwm tom ntej, ua kom cov khoom sib xws.
Multi-functional assembly: Tsim nyog tsis yog rau vuam xwb tab sis kuj rau kev sib dhos tshuab, ntsuas kev tsim kho, ntsuas, drilling, tapping, thiab pwm debugging.
Modular expansion: Ntau qhov chaw ua haujlwm tuaj yeem koom nrog sab - los ntawm - sab los tsim thaj chaw ua haujlwm loj dua. Cov kab sib chaws ua haujlwm zoo kawg nkaus, ua kom lub tshuab ua haujlwm ntawm cov khoom loj.
Cov khoom siv
Main daim ntawv thov scenarios
Lub platform ntawm qhov loj me no yog "qhov chaw ua haujlwm ntau yam" hauv kev cob qhia, tshwj xeeb tshaj yog tsim rau:
• Vuam ntawm me me thiab nruab nrab- qhov loj me: brackets, brackets, me thav duab, vaj tse, qhov rooj ncej, thiab lwm yam.
• Cov qauv tsim thiab kev tshawb fawb thiab kev tsim kho: tsim nyog rau me me -batch sim ntau lawm thiab kev tsim khoom tshiab, thiab tuaj yeem tshawb xyuas cov txheej txheem siv cuab yeej sai.
• Kho thiab tu rhiav: siv los kho, hloov pauv lossis tsim cov khoom hloov pauv, nrog cov txheej txheem clamping yooj yim.
• Kev kawm thiab kev cob qhia: Nws yog ib qho khoom siv zoo tshaj plaws rau kev qhia precision vuam thiab cov cuab yeej hauv cov tsev kawm txuj ci lossis chaw cob qhia kev lag luam.
• Raws li ib qho ntxiv rau cov kab ntau lawm loj: nyob ib sab ntawm cov kab ntau lawm, siv rau prefabricating cov khoom me me los yog cov khoom siv sub-.
Hom Kev Ua Haujlwm
1. Kev Npaj: Txiav txim siab qhov chaw ntawm lub dav hlau datum thiab cov ntsiab lus clamping raws li cov duab kos duab.
2. Kev teeb tsa: Ntxuav lub rooj saum npoo, xaiv thiab txhim kho cov kev txhawb nqa tsim nyog rau pad lub workpiece kom haum qhov siab.
3. Kev Tso Cai: Siv qhov chaw pins, stoppers, lossis txoj cai -lub kaum sab xis los txiav txim siab qhov tseeb ntawm qhov chaw ua haujlwm ntawm lub dav hlau X-Y.
4. Clamping: Siv ceev ceev clamps, bolts, los yog toggle clamps ruaj khov kho lub workpiece los ntawm ntsug los yog lateral kev taw qhia.
5. Vuam thiab tshuaj xyuas: Ua vuam. Vim yog qhov tseeb ntawm qhov chaw, tom qab qhov chaw- vuam ob peb lub ntsiab lus tseem ceeb, cov khoom siv tseem ceeb feem ntau tuaj yeem raug xoob, thiab lub platform tuaj yeem siv rau cov khoom ua haujlwm tom ntej kom ua tiav cov haujlwm sib dhos.
6. Rov pib dua: Tom qab ua tiav, tshem tawm tag nrho cov khoom siv, kho lub rooj saum npoo kom huv si, thiab npaj rau kev teeb tsa tom ntej.
Peb Cov Txheej Txheem Kev Pabcuam
Ua ntej-Sales Consultancy
1
>>
Kev lees paub ntawm kev txiav txim
2
>>
Ntau lawm
3
>>
Ntau -Channel Shipping
4
>>
Kev lees paub ntawm txais
5
>>
Tom qab -muag Services
6
FAQ
FAQ
01.Lub sij hawm ua ntej rau kev txiav txim yog dab tsi?
02.Peb yuav tsum siv lub ntim khoom zoo li cas?
Peb siv fumigation -dawb ntoo crates uas ua tau raws li cov qauv export rau ntim.
03.Peb puas muaj qhov kev txiav txim yam tsawg kawg nkaus?
04.Cov ntaub ntawv dab tsi koj muab rau kev xa tawm?
05. Kuv yuav tso qhov kev txiav txim li cas?
06.Nws puas tuaj yeem tuaj xyuas koj lub Hoobkas?
Cov khoom pov thawj
Kev tshuaj xyuas neeg siv khoom
Kev Pabcuam Tomqab Muag
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
★Standard Warranty: 12 lub hlis lossis 2,000 lub sijhawm ua haujlwm (qhov twg los ua ntej).
★ Ntxiv Warranty: Xaiv qhov kev pab them nqi mus txog 36 lub hlis.
★ Kev Txhawb Thoob Ntiaj Teb: 24/7 kev pabcuam thiab cov khoom seem.
★ Kev cob qhia: Ntawm - qhov chaw lossis chaw taws teeb ua haujlwm / kev cob qhia tu.
cov tswv cuab nquag
xyoo kev
xwm txheej & kev sib tw
cov kws qhia ntawv
Cov ntsiab lus
Leej twg xaiv Lemar Vuam Rooj Thiab Lub Rooj Zaum?

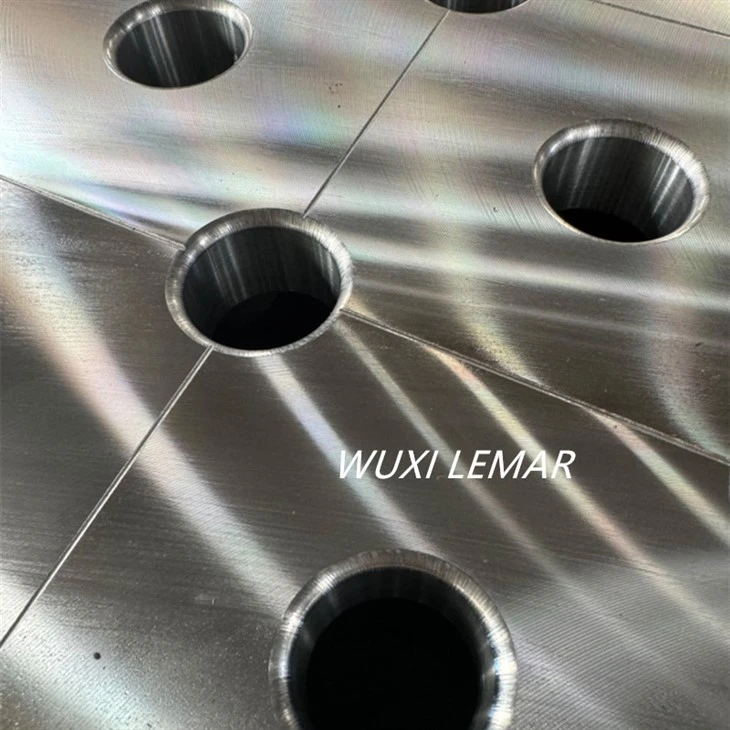

Peb 3D vuam platform boasts ntau dua precision, qis kam rau ua, flatness:<0.01mm/mm, smooth inner holes without burrs, and special nitriding treatment that makes welding slag easier to clean. Furthermore, our nitriding process enhances our tabletop hardness to HV:600 at least.
pab neeg tshaj lij
Txais customization
CE- ntawv pov thawj dhau
4 '* 4' Vuam Fixture Table tsis yog ib qho yooj yim 'hlau rooj', tab sis yog qhov siab -precision, modular 'manufacturing platform' lossis 'fixture system'. Nws simplifies complex fixture tsim rau hauv ib tug 'lub tsev thaiv' mus kom ze ntawm tus qauv kab sib chaws, ua hauj lwm raws li ib tug indispensable core piece ntawm cov khoom nyob rau hauv niaj hnub saj zawg zog manufacturing thiab lean ntau lawm. Rau cov tuam txhab lag luam nquag tuav cov khoom sib txawv welded los yog me me - batch ntau lawm khiav, nws sawv cev rau kev nqis peev uas txhawb kev sib tw tseem ceeb.
Yog xav paub ntxiv thiab tus nqi ntawm4' * 4' Vuam Fixture Table, thov hu rau kuv ncaj qha ↓↓↓
Eva:+86 159 952 699 47(Whatsapp/Wechat)
Email: evasummer@lemarmetal.com
www.lemarachine.com
Cim npe nrov: Tuam Tshoj 4' * 4' vuam fixture rooj, Tuam Tshoj 4'*4' vuam fixture rooj manufacturers, lwm tus neeg, Hoobkas
