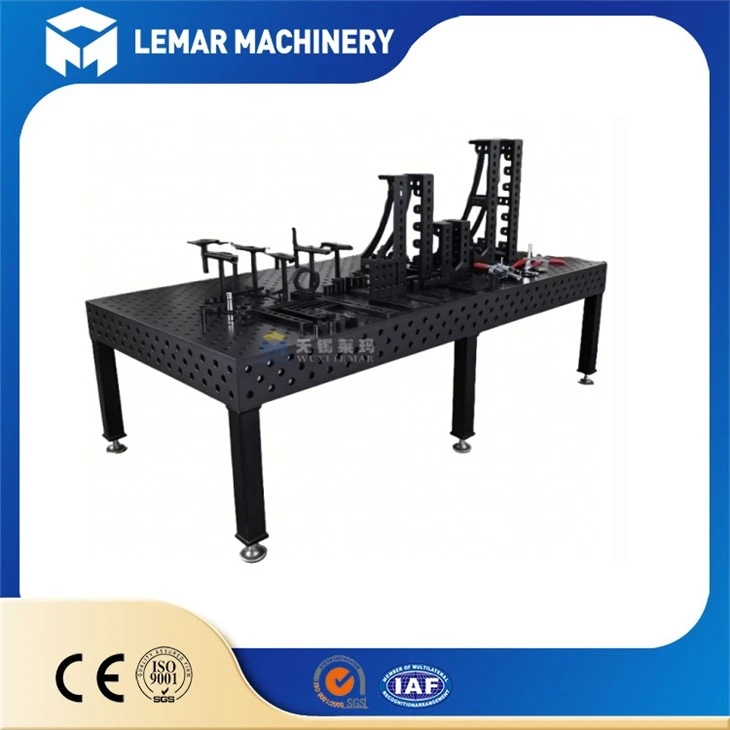

Cast Iron Vuam Rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
Khoom Description
Pab neeg tshaj lij
Cam khwb cia hlau Vuam Rooj yog ib qho hnyav- lub luag haujlwm vuam puag platform ua los ntawm siab -lub zog grey cam khwb cia hlau (HT300) los ntawm kev laus kev kho mob thiab precision machining. Nws yog siv rau qhov chaw ua haujlwm, clamping, thiab vuam siv kev txhawb nqa, thiab yog cov cuab yeej tseem ceeb hauv kev lag luam xws li tshuab, tsheb, thiab cov qauv hlau.
Khoom Paub meej
Cov ntaub ntawv tseem ceeb thiab cov txheej txheem
- Khoom siv: HT300 grey cam khwb cia hlau, ua hauj lwm deg hardness HB170-240; graphite yog nyob rau hauv daim ntawv flake, muaj qhov muaj kev poob siab, kev tiv thaiv kub, thiab deformation kuj.
- Kev laus kev kho mob (Critical)
- Artificial Annealing: Tuav ntawm 600-700℃rau 8-12 teev, ces maj mam txias kom tshem tawm cov kev ntxhov siab sab hauv.
- Natural Aging: Muab tso rau sab nraum zoov rau 2-3 xyoos ntxiv kom tso tawm qhov kev ntxhov siab ntxiv, ua kom ntev - lub sij hawm deformation kuj.
- Tus Qauv Tsim
Ua hauj lwm nto: T- qhov (kho fixtures), mesh qhov/slag tawm qhov (slag tshem tawm, qhov cua), grounding ntsia hlau qhov (anti- zoo li qub).
Qhov tseem ceeb ntawm kev ua tau zoo
qhia txog qhov zoo ntawm cam khwb cia- hlau- vuam- rooj
ruaj khov precision thiab muaj zog tiv thaiv thermal deformation
Nws tuaj yeem tiv taus qhov kub thiab txias ntawm 200-500℃nrog deformation ntawm<0.02mm/m; its flatness remains unchanged after long-term use, making it suitable for batch and precision welding.
Zoo heev shock absorption thiab kev vibration txo
Lub cam khwb cia hlau graphite qauv absorbs vuam vibrations, txo qhov kev pheej hmoo ntawm weld tawg, thiab yog haum rau neeg hlau vuam thiab siab - precision workpieces.
Hnav-resistant, ruaj, thiab ntev- kav ntev
High hardness thiab resistant rau splashing thiab adhesion; tuaj yeem siv rau 10-20 xyoo nrog kev tu ib txwm; yog tias qhov precision txo qis, nws tuaj yeem raug khawb thiab kho thiab rov siv dua.
Flexible clamping thiab muaj ntau yam
T- cov qhov thiab cov txheej txheem lub qhov (xws li Φ28mm, qhov sib nrug ntawm 100mm), nrog rau cov squares, pads, thiab ceev clamps, ua kom muaj ntau- chaw nres tsheb thiab ntau- lub kaum sab xis.
Cov lus qhia txog kev nyab xeeb
- Ua ntej pib ua haujlwm, xyuas kom cov xaim hauv av txuas nrog kom zoo kom tshem tawm cov kev pheej hmoo ntawm hluav taws xob xau thaum vuam.
- Tsis txhob tso cov khoom hnyav ncaj qha mus rau qhov chaw ua haujlwm ntawm qhov siab kom tsis txhob muaj kev puas tsuaj rau cov npoo thiab cov fab ntawm lub rooj vuam los yog tawg ntawm lub rooj saum npoo.
- Tsis txhob tso cov khoom tsis sib npaug ntawm qhov chaw ua haujlwm rau lub sijhawm ntev kom tsis txhob muaj kev ntxhov siab tsis sib xws los cuam tshuam rau qhov tseeb ntawm flatness.
- Thaum vuam, xav txog kev siv daim pam hluav taws thiab cov phaj tiv thaiv kom txo tau qhov chaw cuam tshuam los ntawm sparks.
Daim ntawv pov thawj zoo
Tiv tauj peb
Tuam txhab profile
Tsim los ntawm 2005, LEMAR MACHINERY yog ib lub chaw tsim khoom hauv Suav teb ntawm cov khoom siv vuam. Peb pib nrog vuam positioners, cov menyuam thav ntawv thiab manipulators, thiab txuas ntxiv peb cov khoom kab rau CNC drilling tshuab, 3D vuam rooj thiab saj zawg zog tooling nyob rau hauv 2008.
Peb tau pib ua lag luam thoob ntiaj teb hauv xyoo 2007 thiab hloov kho cov khoom mus rau cov qauv thoob ntiaj teb. Tau txais daim ntawv pov thawj CE thiab GS hauv xyoo 2015, peb tam sim no ua haujlwm rau ntau tshaj 30 lub teb chaws thiab cheeb tsam thoob plaws Tebchaws Europe, America thiab dhau mus. Peb cov khoom siv rau automotive, shipbuilding, aerospace, cua zog thiab lwm yam sectors. Peb siv zog xa cov cuab yeej siv tau thiab cov kev daws teeb meem tag nrho rau cov neeg siv khoom thoob ntiaj teb.
Nrhiav rau siab -Ntaus Hlau Vuam Rooj? Hu rau peb hnub no kom tau txais cov lus qhia ceev lossis cov ntsiab lus ntxiv:
