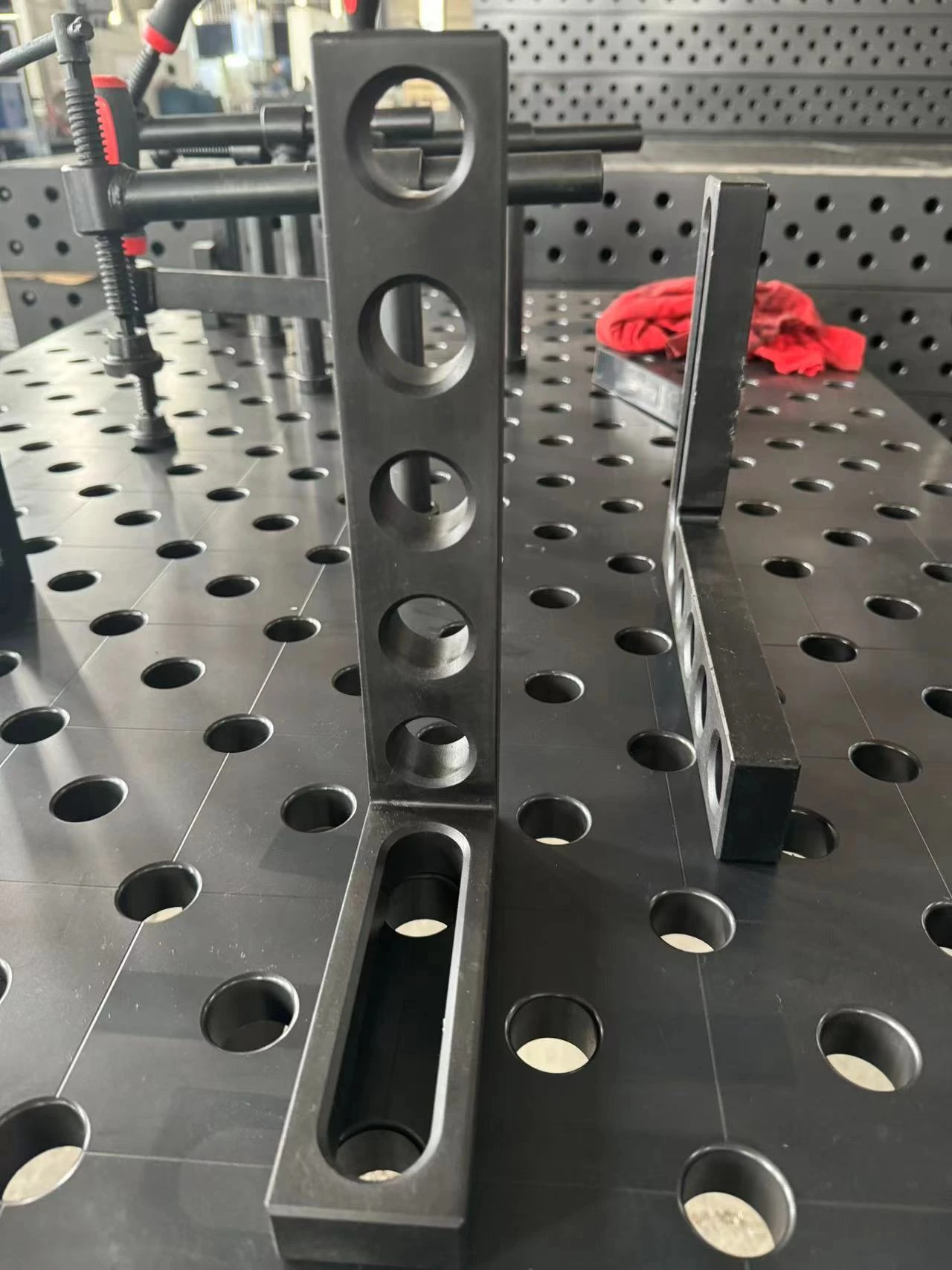

D28/D16 3D Vuam Rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Nto: Ib txwm / Nitrided
Tiv tauj peb rau Quote: Eva(WA:+8615995269947 Evasummer@lemarmetal.com)
Qauv: 3D
Hom Lub Npe: Lemar
Kuv txhim kho koj txoj kev siv vuam vuam
Los ntawm kev siv LemarD28/D16 3D Vuam Rooj
Khoom Description
D28/D16 3D welding rooj yog modular vuam tooling puag platform raws li ib tug 28mm los yog 16mm standardized grid system.It enables tag nrho cov modular Cheebtsam (los ntawm txawv manufacturers) uas ua raws li cov qauv no yuav interchangeable thiab combinable nyob rau tib lub platform los ntawm unified qhov sib nrug (28mm los yog 16mm constructing) muaj qhov sib txawv. peb -seem welding fixtures.
Peb qhov chaw nyob: 505-1 NO.8 JIEFANG WEST ROAD, LIANGXI DISTRICT, WUXI, CHINA
Xov tooj:+86 159 952 699 47(Eva)
Evasummer@lemarmetal.com
Khoom Loj
Yam khoom
Khoom nta
| Cov yam ntxwv tseem ceeb | Kev piav qhia |
|---|---|
| 1. Txheem interface | D28 SystemLub qhov taub φ28mm, qhov sib nrug 100mm ± 0.02mm.High zog, muaj zog versatility, haum rau nruab nrab mus rau loj workpieces. D16 SystemLub qhov taub φ16mm, qhov sib nrug 50mm ± 0.01mm.Ntau dua precision, ntau dua qhov ceev, haum rau me me, precision workpieces. Cheebtsam ntawm ob lub tshuab yogtsis sib haumnrog rau ib leeg, tab sis lawv qhia tib lub tswv yim tsim qauv. |
| 2. Modularity & Compatibility | Tag nrho cov khoom sib txuas (kev txhawb nqa blocks, lub kaum sab xis phaj, clamps) yog nruab nrog tus qauv nrhiav tus pins / threaded studs nyob rau hauv qab uas phim lub platform qhov. Tsuav lawv ua raws li tus qauv qub (D28 lossis D16), cov khoom siv los ntawmtxawv hom, qub lossis tshiab, tuaj yeem sib xyaw thiab siv, tsim kom muaj ecosystem loj heev. |
| 3. Precision Reference yam ntxwv | Lub rooj yog ua los ntawm siab - lub zog cam khwb cia hlau, undergoes kev nyuaj siab nyem thiab precision machining los xyuas kom meejntev -lub sij hawm stability thiab flatness(feem ntau Tsawg dua lossis sib npaug li 0.05mm / m²). Daim phiaj qhov yog tiav nyob rau hauv ib qho kev teeb tsa los ntawm CNC cov cuab yeej, kom ntseeg tau qhov tseeb ntawm qhov chaw, tso cai rau lub rooj ua haujlwm.lub cev siv rau kev ntsuas. |
| 4. 3D Reconfigurability | Los ntawm kev siv txhua kab, txuas txuas ntxiv, thiab lub kaum sab hloov pauv ntawm qhov siab sib txawv, ob - qhov chaw ua haujlwm qhov chaw ua haujlwm tuaj yeem txuas mus rau peb - qhov chaw seem, ua rau3D fixturing ntawm complex qauv. |
Cov khoom ua haujlwm
Main Kev Ua Haujlwm
1. Kev Npaj Ua Haujlwm
◦ Txheeb xyuas tus qauv 3D lossis kos duab ntawm lub workpiece los txiav txim siab lub ntsiab datums thiab clamping cov ntsiab lus.
◦ Npaj cov layout ntawm daim ntawv los yog daim phiaj CAD yooj yim kos duab.
2. Kev npaj lub platform
◦ Ntxuav lub platform nto thiab daim phiaj qhov kom paub tseeb tias tsis muaj vuam slag lossis plua plav.
3. Fixture Construction (raws li "Txoj Cai Ua Ntej")
◦ Kauj Ruam 1: Tsim cov ntaub ntawv tseem ceeb. Txhim kho cov khoom siv (xws li muab cov blocks, pins) rau qhov chaw tseem ceeb ntawm qhov chaw / cov ntsiab lus ntawm cov khoom ua haujlwm.
◦ Kauj Ruam 2: Pab txhawb nqa. Txhim kho cov ntsiab lus txhawb nqa kom tsis txhob deformation.
◦ Kauj Ruam 3: Siv lub zog clamping. Thaum kawg, nruab cov pressers thiab siv quab yuam los ntawm cov kev taw qhia rov qab mus rau qhov chaw cov ntsiab lus.
4. Kev txheeb xyuas thiab kev tsim khoom
◦ Thawb thawj daim thiab txheeb xyuas qhov loj me uas siv cov cuab yeej xws li ntsuas.
◦ Pib batch vuam ua haujlwm tom qab kuaj xyuas.
5. Disassembly thiab hloov
◦ Tom qab kev tsim khoom tiav, disassemble cov khoom ua ntu zus, ntxuav thiab xa rov qab mus rau lawv cov haujlwm qub, thiab rov qab kho lub platform rau nws thawj lub xeev.
Khoom Qhia
FAQ
FAQ
01.Lub sij hawm ua ntej rau kev txiav txim yog dab tsi?
02.Peb yuav tsum siv lub ntim khoom zoo li cas?
Peb siv fumigation -dawb ntoo crates uas ua tau raws li cov qauv export rau ntim.
03.Cov ntaub ntawv dab tsi koj muab rau kev xa tawm?
04. Kuv yuav xaj li cas?
05.Nws puas tuaj yeem tuaj xyuas koj lub Hoobkas?
Cov khoom pov thawj
Kev tshuaj xyuas neeg siv khoom
Kev Pabcuam Tomqab Muag
Peb ib txwm nyob ntawm koj qhov kev pabcuam thaum koj xav tau
★Standard Warranty: 12 lub hlis lossis 2,000 teev ua haujlwm (qhov twg los ua ntej).
★ Ntxiv Warranty: Xaiv qhov kev pab them nqi mus txog 36 lub hlis.
★ Kev Txhawb Thoob Ntiaj Teb: 24/7 kev pabcuam thiab cov khoom seem.
★ Kev cob qhia: Ntawm -qhov chaw lossis chaw taws teeb ua haujlwm / kev cob qhia tu.
D28/D16 3D welding platform yog lub hauv paus rau kev nrov thiab kev tsim qauv ntawm kev siv tshuab modular fixture. Nws tsis yog ib yam khoom, tab sis ib qho qhib thiab scalable manufacturing ecosystem.
Nws tus nqi tseem ceeb nyob hauv "encapsulating complexity nyob rau hauv tus qauv interfaces". Cov neeg siv tsis tas yuav delve rau hauv cov txheej txheem mechanical thiab precision; lawv tsuas yog yuav tsum tau ua raws li cov kev cai yooj yim tsim kom sai thiab txhim khu kev qha precision fixtures siv cov "industrial Lego" blocks.
Rau feem coob ntawm cov tuam txhab tsim khoom, xaiv D28 system yog qhov kev nyab xeeb tshaj plaws thiab tus nqi -kev nkag tau zoo thiab txhim kho kev daws teeb meem. Nws tau ua tiav qhov zoo tshaj plaws sib npaug ntawm precision, rigidity, yooj, thiab tus nqi. Nws yog cov cuab yeej siv tau zoo tshaj plaws los pab cov lag luam tawg los ntawm cov teeb meem ntawm cov khoom me me thiab ntau yam, thiab txav mus rau ntshiv thiab yoog raws ntau lawm. Kev nqis peev hauv cov txheej txheem zoo li no yog kev nqis peev hauv lub tuam txhab cov peev txheej tsim khoom lag luam yav tom ntej los daws qhov tsis paub tseeb.
