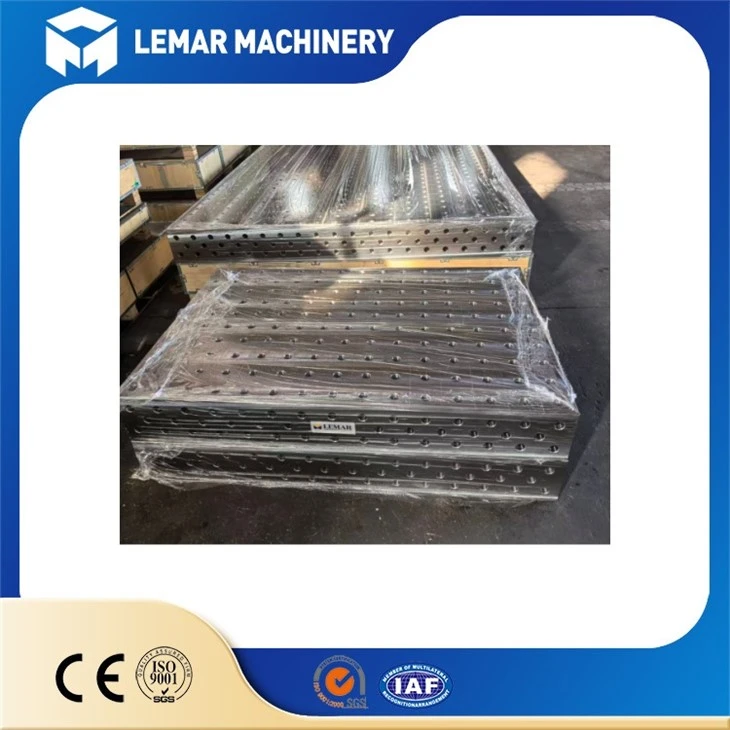

Siab -Hardness 3D Vuam Rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
Khoom Description
High-Hardness 3D vuam rooj yog cov cuab yeej siv yooj yim siv hauv kev lag luam vuam rau qhov chaw ua haujlwm, clamping, sib dhos, thiab ua haujlwm vuam. Lawv cov txiaj ntsig tseem ceeb yog nyob rau hauv kev hnav tsis kam thiab kev ruaj ntseg ntawm lawv qhov siab - hardness tabletops, ua rau lawv tsim nyog rau kev hloov pauv ntawm cov khoom siv ib zaug, cov khoom me me, thiab ntau yam ntawm cov khoom ua haujlwm. Lawv tau siv dav hauv kev lag luam xws li kev tsim kho tshuab, khoom siv tsheb, cov qauv hlau, thiab kev tsheb ciav hlau, qhov twg cov vuam raug siab thiab cov cuab yeej siv yuav tsum tau ua.
Specifications thiab qauv tooj
High-hardness 3D vuam rooj yog feem ntau muab faib ua ob series: D16 thiab D28. D16 series feem ntau muaj qhov sib txawv ntawm 50 × 50mm, thaum D28 series feem ntau muaj qhov sib txawv ntawm 100 × 100mm, haum rau ntau qhov sib txawv ntawm cov cuab yeej fixtures.
Core Design thiab Structure
Modular Grid System: Qhov chaw ua haujlwm yog ua los ntawm siab - hardness alloy steel (feem ntau yog cov hlau tsis muaj hlau lossis cov hlau tshwj xeeb), npog nrog cov kab sib txuas ntawm cov qhov ua tau zoo raws li tus qauv sib xws (xws li D28 lossis D16 series). Cov qhov no tsim lub hauv paus ntawm qhov system modularity.
High Hardness yam ntxwv: Lub rooj zaum lub cev tau txais kev kho cua sov tshwj xeeb (xws li quenching thiab tempering), uas ua rau muaj qhov tawv tawv heev (feem ntau HRC 45-55 lossis siab dua). Qhov no muab kev hnav tsis kam, compressive zog, thiab zuag qhia tag nrho rigidity deb tshaj li zoo tib yam steel platforms.
Peb -Dimensional Expandability: Los ntawm tus qauv qhov, ntau yam kev ua haujlwm modules tuaj yeem ntsia tau rau hauv txhua qhov kev taw qhia (X, Y, thiab Z axes), tsim peb - qhov chaw nyob thiab qhov chaw clamping haum rau workpieces nrog cov duab nyuaj heev.
Countertop khoom
| Kev xaiv cov khoom siv tseem ceeb |
(1) Siab -lub zog alloy steel qauv: High- steels zoo xws li Q355B thiab 45 # steel yog siv los ua cov khoom siv rau lub chaw ua haujlwm. Cov ntaub ntawv no muaj lub zog zoo thiab tawv, muaj peev xwm tiv taus qhov hnyav thiab vuam cuam tshuam ntawm nruab nrab -tonnage workpieces. Lawv yog cov khoom uas nyiam tshaj plaws rau kev siv dav dav - lub hom phiaj vuam fixtures thiab yog haum rau feem ntau cov pa vuam scenarios, xws li cov nyob rau hauv kev tsim kho machinery thiab automotive qhov chaw tsim khoom.
(2) Hnav -cov hlau cam khwb cia: Siv hnav- cov cam khwb cia hlau xws li HT300 raws li cov khoom siv raw, cov khoom siv ntawm cov hlau cam muab kev hnav zoo dua piv rau cov hlau zoo tib yam. Tom qab kev kho cua sov tom qab, nws tuaj yeem ua tau raws li qhov xav tau ntawm vuam thiab kev ua haujlwm ntawm cov khoom hnyav (xws li cov qauv hlau loj thiab cov khoom siv excavator), ua rau nws haum rau siab -load, ntev- lub sijhawm ua haujlwm ntau lawm.
(3) Stainless hlau: 304 lossis 316 stainless hlau yog siv los ua cov khoom siv hauv chaw ua haujlwm, feem ntau yog siv rau vuam xwm txheej uas yuav tsum tau muaj kev tiv thaiv corrosion, xws li hauv cov khoom siv tshuaj thiab khoom noj khoom haus. Txhawm rau txhim kho hardness, stainless hlau nto tau txais kev kho deg hardening ntxiv, ntsuas kev tiv thaiv corrosion thiab hnav tsis kam.
Cov khoom pov thawj
Daim ntawv pov thawj CE yog qhov yuav tsum tau ua raws li EU txoj cai lij choj rau cov khoom lag luam kev nyab xeeb, kev noj qab haus huv, thiab kev tiv thaiv ib puag ncig, thiab tsis yog daim ntawv pov thawj zoo xwb. Cov khoom lag luam uas muaj lub cim CE yog suav tias yog "passport" rau cov tuam txhab lag luam nkag mus rau European lag luam, tso cai rau nws tuaj yeem xa tawm dawb thiab muag raws cai hauv txhua lub xeev EU.
Hardness - txhim kho cov txheej txheem kho cua sov
(1) Cov txheej txheem yooj yim: quenching + tempering. Qhov no yog txheej txheem txheej txheem rau ntxiv dag zog rau saum npoo hardness ntawm lub tabletop. Cov hlau ntawm lub rooj zaum yog thawj rhuab saum nws qhov tseem ceeb kub thiab tuav rau ib lub sij hawm ntawm lub sij hawm ua ntej yuav tsum tau txias sai heev (quenching), transforming lub sab hauv ntawm cov hlau mus rau hauv siab -hardness martensite; tom qab ntawd, qis- kub tempering yog ua los tshem tawm cov kev ntxhov siab sab hauv los ntawm kev quenching, tiv thaiv nkig tawg ntawm lub rooj. Qhov no thaum kawg stabilizes Brinell hardness ntawm lub ntsiav tshuaj nyob rau hauv ntau ntawm 200-400 HB, sib npaug ob qho tib si hardness thiab toughness.
(2) Cov txheej txheem Advanced: Kev Kho Nto Nitriding. Rau cov ntsiav tshuaj xav tau kev hnav tsis kam thiab tiv thaiv xeb, txheej txheej nitriding saum npoo yog ntxiv tom qab quenching thiab tempering. Los ntawm kev muab cov ntawv sau rau hauv lub qhov cub nitriding, nitrogen atoms tau diffused rau hauv txheej txheej ntawm cov hlau, tsim ib txheej ntawm cov tawv tawv heev. Cov txheej txheem no tsis tsuas yog txhim kho qhov hnav tsis kam ntawm cov ntsiav tshuaj tab sis kuj txhim kho nws cov xeb tiv thaiv, txuas ntxiv lub neej kev pab cuam ntawm cov cuab yeej hauv cov chaw ua haujlwm ntub dej.
Core Advantages thiab Nta
Unparalleled Precision thiab Repeatability: Txhua qhov chaw qhov chaw thiab cov khoom siv ua haujlwm yog qhov tseeb - ua haujlwm nrog kev tshem tawm tsawg. Thaum lub fixture tsim tiav, ceev thiab meej workpiece positioning tiav, kom ntseeg tau siab sib xws nyob rau hauv loj ntau lawm nrog tolerances nruj li ± 0.05mm los yog zoo dua.
Qhov kawg Flexibility thiab Efficiency: Tsis tas yuav kho cov cuab yeej ua tiav rau txhua qhov haujlwm tshiab. Tsuas yog siv cov qauv qauv (nres, clamps, nrhiav tus pins, txhawb txhua kab, lub kaum ntse ntse ntsuas, thiab lwm yam) kom rov kho qhov teeb meem ntawm daim phiaj. Qhov no txo qis lub sijhawm npaj cov cuab yeej (ntau dua 90%), ua rau nws zoo tagnrho rau ntau- khoom, me- batch ntau lawm.
Tswj tau zoo ntawm Vuam Deformation: Lub siab -rigidity rooj nws tus kheej yog resistant rau deformation, thaum lub hwj chim peb -dimensional clamping system muab multi-point, multi-directional rigid fixation ntawm lub workpiece, txo thermal stress deformation thaum lub sij hawm vuam thiab txo cov kev kho tom ntej.
Exceptional Durability thiab Nqis -Effectiveness: Lub siab -hardness nto yog hnav heev-resistant, cuam tshuam-resistant, thiab resistant rau vuam spatter, muab ib tug lifespan ntawm kaum xyoo. Txawm hais tias thawj zaug peev yog siab dua, nws yooj yim thiab ntev lifespan ua rau cov cuab yeej qis heev amortization nqi ib chav nyob rau lub sijhawm ntev.
Txhim kho kev nyab xeeb thiab Ergonomics: Lub workpiece yog ruaj ntseg clamped, tso tus neeg teb xov tooj txhais tes kom tsom mus rau cov txheej txheem vuam thiab txo cov kev pheej hmoo cuam tshuam nrog kev tuav thiab tuav. Qhov chaw ua haujlwm huv thiab kev sib koom ua ke kuj txhim kho qhov chaw ua haujlwm.
Cov neeg siv khoom duab
Tsis ntev los no, ntau tus neeg muas zaub txawv teb chaws tau tshaj tawm tias peb peb -seem ntau- ua haujlwm steel tivthaiv vuam platform, nrog nws peb qhov zoo ntawm qhov siab -precision positioning, hloov tau yooj yim ua ke, thiab ruaj khov durability nyob rau hauv hnyav- lub luag hauj lwm tej yam kev mob, tau txhim kho lawv cov vuam ntau lawm efficiency thiab txo cov nqi cuab yeej.
Los ntawm kev xaiv cov khoom siv raw mus rau CNC precision machining, los ntawm qhov chaw tiv thaiv- xeb kev kho rau cov qauv tsim qauv, peb pheej ua txhua yam khoom siv rau cov qauv siab tshaj plaws.
Txawm hais tias nyob rau hauv kev tsim tsheb, kev tsim kho tshuab, lossis kev thauj mus los hauv kev lag luam, lub vuam platform no tuaj yeem ua tau raws li cov kev xav tau ntawm cov xwm txheej sib txawv thiab tsim kom muaj txiaj ntsig rau peb cov neeg siv khoom!
Yuav koom tes nrog peb li cas?
Yog koj txaus siab rauSiab -hardness 3D vuam rooj, Koj tuaj yeem tiv tauj peb los ntawm cov txheej txheem hauv qab no.
Peb qhov chaw nyob
No.505 Jiefang Road, Liangxi District, Wuxi City, Suav teb
Xov tooj
+86 18006193916
E -mail
amywang@lemarmetal.com
Tswv yim
1. Ib puag ncig yuav tsum tau muaj
Kub: 20 ± 1℃(AA qib), 20 ± 2℃(A qib)
Humidity: 40-60% RH
Kev huv huv: ISO 7 lossis siab dua
Kev vibration: Tsawg dua lossis sib npaug rau 0.5μm amplitude (10-100Hz)
2. Cov txheej txheem ua haujlwm
Preheating: Preheat rau 1-2 teev tom qab fais fab tuag kom ncav cuag thermal sib npaug
Load Distribution: Muab faib sib npaug, tsis txhob muaj cov khoom hnyav
Cov txheej txheem ntxuav: Siv cov cuab yeej tshwj xeeb, tsis txhob khawb qhov chaw
Txwv tsis pub ua: cuam tshuam ncaj qha, overheating thaum vuam, tshuaj corrosion
