16mm Vuam Rooj

Khoom siv: Hlau / Cam khwb cia hlau
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar

Xa kev nug

Khoom Description

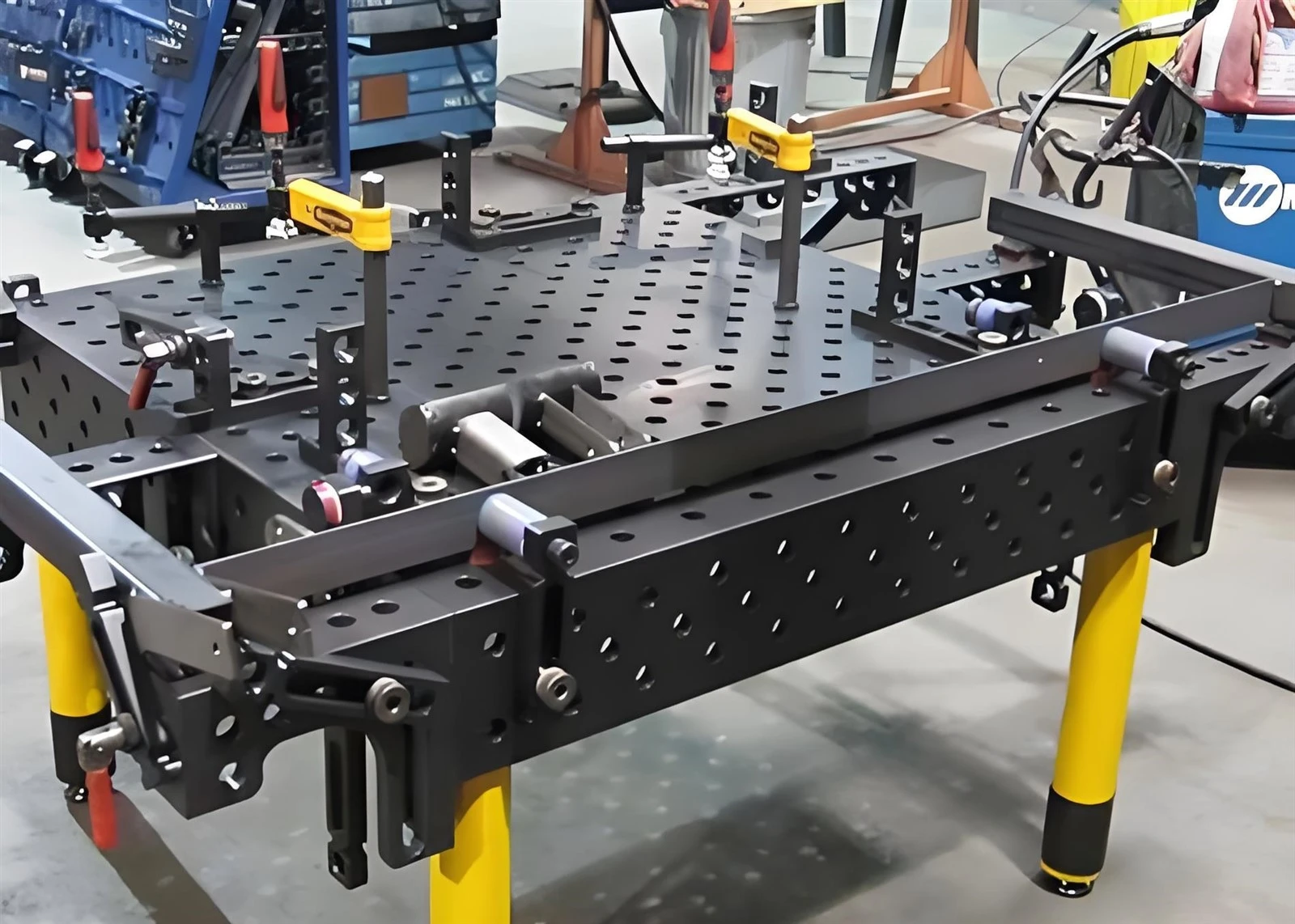

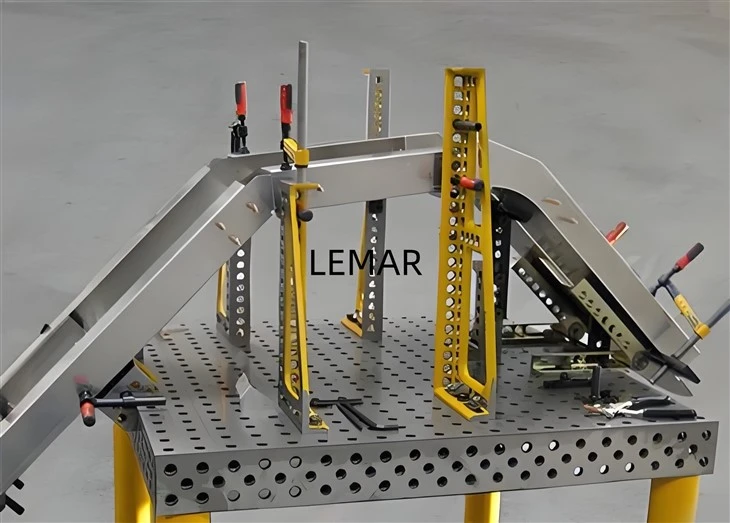

Lub 16 hli Vuam Rooj yog ib tug precision modular vuam workbench raws li ib tug 16 hli txoj kab uas hla. Nws yog tsim los rau qhov tseeb qhov chaw thiab vuam fixtures nyob rau hauv me me mus rau nruab nrab loads, thiab yog haum rau precision sheet hlau, me me mechanical qhov chaw, thiab multi- ntau yam, me me -batch ntau lawm.

Core benchmark: 16mm lub qhov taub + 50mm square grid ( kab pheeb ces kaum qhov sib nrug 70.7mm), tsib -sided qhov kev npaj ntawm lub rooj thiab plaub sab, tau tshaj 16mm fixtures thiab positioning accessories, ceev tooling los ua ke, positioning raug mus txog ± 0.08mm.

Cov qauv tseem ceeb thiab cov txheej txheem tsis zoo

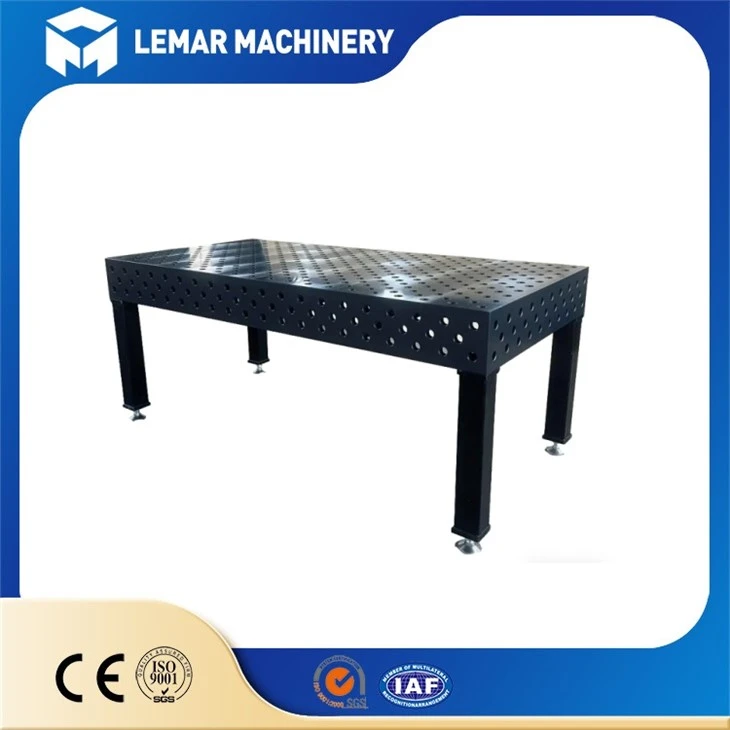

Tabletop Dimensions: 2000 × 1000mm-4000 × 2000mm, qhov ntau thiab tsawg tuaj yeem hloov kho
Qhov Specifications: Qhov taub φ16mm, 50mm square grid (kab pheeb ces kaum 70.7mm), tsib -sab perforation
Khoom siv thiab ua: Q355 qis- alloy siab- lub zog steel, tabletop thickness 12mm, zuag qhia tag nrho quenching HRC45-50 + blackening/nitriding
Load Capacity Accuracy: Uniform load peev 2000kg, repeatability ± 0.08mm
Tus Qauv Tsim: 50 × 50mm square tube ncej, adjustable taw taw (± 50mm)
Tau tshaj Fixtures: D16 series positioning pins, F-clamps, right{2}}angle blocks, V-blocks, thiab lwm yam.
Customization Options: Loj, Khoom, Surface Treatment, Logo Engraving

Countertop core qauv

Kev lag luam daws teeb meem

Xaiv txoj kev npaj uas haum koj tshaj plaws.

Ntau yam:

Tsis tsuas yog rau vuam, tab sis kuj rau precision sib dhos, tshuaj xyuas, kho kom haum, thiab me me pwm sib dhos.

Txo cov nqi

Tshem tawm cov qauv tsim, tsim khoom, khaws cia, thiab kev saib xyuas tseem ceeb cuam tshuam nrog cov khoom siv tshwj xeeb. Cov khoom siv tuaj yeem rov qab siv tau ntau xyoo.

Deformation tswj

Ntau- taw tes, nruj, thiab qhov chaw sib dhos thiab clamping zoo tswj vuam thermal deformation.

Kev hloov pauv siab

Ib qho system tuaj yeem hloov mus rau qhov yuav luag tsis muaj qhov txwv ntau yam ntawm cov duab thiab qhov ntau thiab tsawg, tshem tawm qhov xav tau rau kev cai kim heev - ua fixtures rau txhua yam khoom.

Export Ntim cog lus

1. Multi- txheej tiv thaiv, xeb thiab shockproof

Siv peb lub- txheej txheej tiv thaiv: nqus tsev- qhwv xeb- cov ntaub ntawv pov thawj, ntim nrog cov dej noo- pov thawj desiccant, thiab cushioned nrog cov paj rwb tuab. Cov plua plav uas tau muab tso rau ntawm lub rooj qhib qhov rooj kom tsis muaj xeb, cuam tshuam, lossis plua plav nkag thaum lub sijhawm thauj hiav txwv / av.

2. Heavy-lub luag haujlwm ntoo crate, ua tau raws li cov qauv thoob ntiaj teb

Ua nrog kev cai - ua 18 hli tuab siab - lub zog plywood crates. Lub thav duab yog ntxiv dag zog nrog cov square tubing, thiab hlau kaum tiv thaiv ntxiv rau cov npoo. Ua tau raws li thoob ntiaj teb maritime ISPM 15 (IPPC) fumigation cov qauv, tso cai rau ncaj qha kev lis kev cai clearance yam tsis muaj fumigation thiab hloov mus rau kev lis kev cai yuav tsum ntawm cov chaw nres nkoj thoob ntiaj teb.

3. Kev cai- txhawb nqa, haum rau cov khoom loj thiab hnyav

Rau vuam rooj ntawm 2000 × 1500mm thiab saum toj no, hauv qab ntawm lub crate yog ntxiv dag zog rau steel pallet thiab anti-slip steel straps los tiv thaiv cov khoom hloov thaum thauj. Ib lub crate tuaj yeem nqa tau txog 3 tons, ua tau raws li qhov xav tau ntawm kev thauj mus los ntev - deb ntawm cov khoom hnyav.

4. Cov ntawv sau meej meej yooj yim rau kev txheeb xyuas cov khoom thauj. Cov qauv khoom lag luam, qhov hnyav tag nrho / qhov hnyav, qhov ntev, qhov chaw, cov cim xa khoom, tsis yooj yim / ntub dej- cov cim pov thawj tau cim meej rau sab nraud ntawm lub thawv, thiab daim npav lus Askiv cov khoom siv tau txuas los pab txhawb kev thauj khoom thiab kev lees paub ntawm cov neeg siv khoom.

Khoom cog lus zoo

1. Cov Qauv Xaiv Cov Khoom Siv Zoo: Txhua lub rooj vuam siv cov khoom siv siab- zoo li Q355 qis- alloy siab- lub zog steel thiab HT250 cam khwb cia hlau. Cov ntaub ntawv raw khoom tau dhau los ntawm kev ntsuas qhov sib xyaw ua ke thiab kev ntsuas lub zog los tiv thaiv cov hlau tsis zoo los ntawm kev nkag mus rau cov txheej txheem tsim khoom, ua kom cov khoom thauj khoom muaj peev xwm thiab deformation los ntawm qhov chaw.

2. High-Cov txheej txheem tsim khoom Precision: Lub qhov machining siv CNC tho txawv tshuab rau precision tho txawv, tswj lub qhov taub tolerances rau ± 0.02mm thiab repeatability rau ± 0.08mm. Lub rooj saum npoo tau txais kev kho tag nrho quenching, ua tiav qhov hardness ntawm HRC45-50, ua rau nws hnav- tiv taus thiab tiv taus vuam slag cuam tshuam, ua kom ntev - lub sij hawm precision yam tsis muaj degradation. Tag nrho cov txheej txheem ua raws li ISO9001 kev tswj hwm kev ua haujlwm zoo, nrog 100% kev tshuaj xyuas tus kheej thiab random sampling tshuaj xyuas cov txheej txheem tseem ceeb; cov khoom tsis tsim nyog yog txwv tsis pub tawm hauv lub hoobkas.

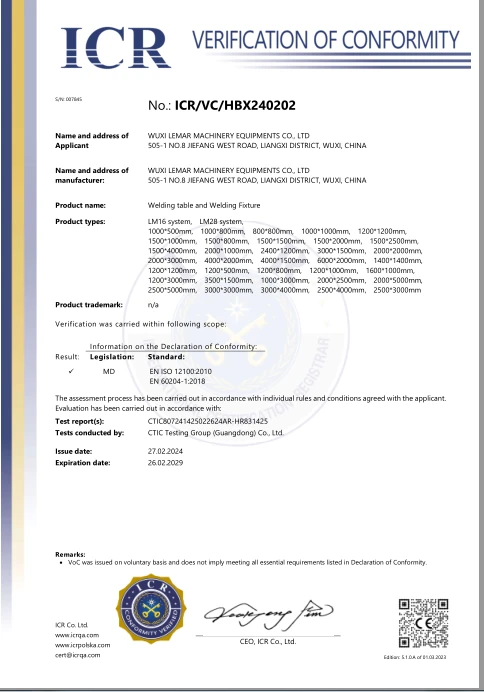

3. International Standard Quality Certifications: Cov khoom tau dhau daim ntawv pov thawj thoob ntiaj teb xws li CE thiab SGS, ua tau raws li kev lag luam kev nyab xeeb thiab cov qauv zoo hauv EU, North America, thiab lwm thaj chaw. Ntim tau raws li ISPM 15 thoob ntiaj teb kev xa khoom xa tuaj, thiab kev kho xeb tiv thaiv tau dhau 48-teev ntsev tsuag tshuaj tsuag, yoog raws li kev xav tau ntawm cov huab cua sib txawv thoob ntiaj teb.

Tom qab - kev muag khoom

1. Extended Warranty thiab Tom qab-Kev Txhawb Kev Muag Khoom: Tus qauv qauv 16mm Vuam Rooj tuaj nrog 1- xyoo lav dawb. Thaum lub sijhawm lav, peb yuav muab kev kho dawb lossis hloov cov kev pabcuam rau kev sib txawv ntawm qhov tseeb thiab cov qauv deformations tshwm sim los ntawm tsis yog -tib neeg- ua rau muaj kev puas tsuaj. Lub neej kev txhawb nqa kev pabcuam thiab cov khoom siv khoom sib txuas tau muab los ua kom cov khoom siv ruaj khov mus ntev.

2. Customized Product Quality Equivalent cog lus: Rau customized tsis yog - qhov ntau thiab tsawg, tshwj xeeb lub tshuab, thiab cov khoom siv tshwj xeeb vuam chaw nres tsheb, peb nruj me ntsis ua raws li cov kev kos duab tau lees paub los ntawm ob tog. Cov qauv yog muab rau ua ntej- kev lees paub txog kev tsim khoom, thiab cov qauv zoo thaum lub sijhawm tsim khoom loj tsis muaj qis dua tus qauv qauv, ua tiav tiag tiag "cov khoom lag luam customized, zoo sib npaug."

3. Kev teb sai sai rau cov teeb meem zoo: Yog tias cov neeg siv khoom ntsib teeb meem zoo thaum siv, lawv tuaj yeem tiv tauj peb tom qab - pab pawg muag khoom txhua lub sijhawm. Peb yuav muab kev daws teeb meem hauv 24 teev. Rau ntawm - qhov chaw pabcuam, cov neeg siv khoom txawv teb chaws tuaj yeem koom tes nrog cov koom tes pabcuam hauv zos rau ntawm - qhov chaw pabcuam; rau cov neeg siv khoom hauv tsev, cov neeg ua haujlwm pabcuam yuav raug npaj los daws qhov teebmeem hauv 48 teev.
