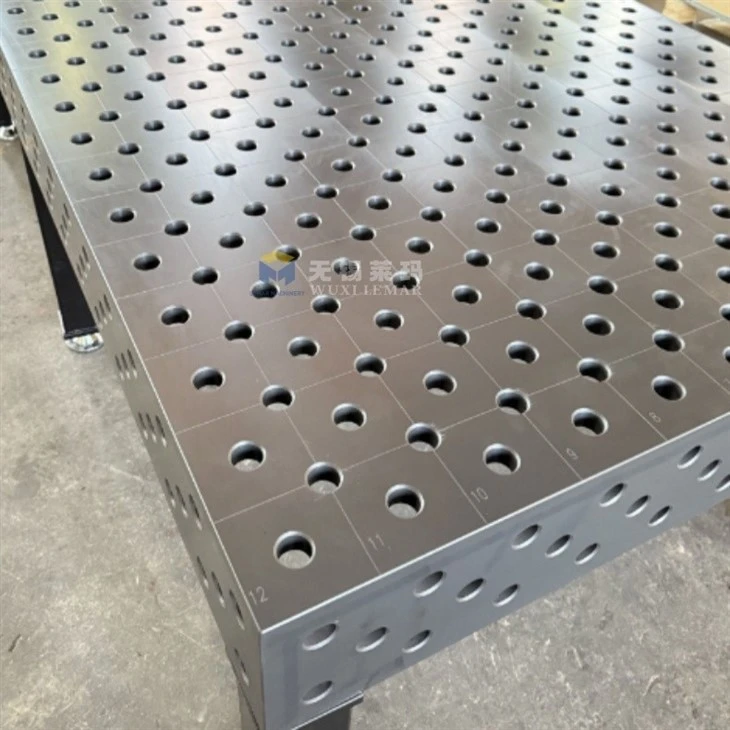

3D Vuam Clamping Workbench

 Saj zawg zog thiab ntau yam, ib lub teeb hloov ntau pua: Hloov tau rau cov khoom ua haujlwm ntawm txhua yam duab thiab qhov loj me (los ntawm qhov me me mus rau qhov loj ntau ntau meters hauv txoj kab uas hla), tshem tawm qhov xav tau rov tsim kho cov khoom siv thiab txuag 90% ntawm cov cuab yeej siv.

 Kev hloov pauv sai sai, kev teeb tsa cov cuab yeej ua tiav hauv 15 feeb: Cov cuab yeej siv niaj hnub xav tau ob peb hnub / lub lis piam; tam sim no, tshiab workpiece clamping tuaj yeem ua tiav hauv 15 feeb, txhim kho kev hloov pauv ntawm 80%.

 High -welding precision, dimensional stability: Positioning precision ± 0.05mm, controllable vuam deformation, zoo sib xws hauv batch khoom, ua tau raws li cov kev cai siab ntawm tsheb, aerospace, thiab tsheb thauj mus los industries.

 3D spatial tag nrho qhov chaw, tsis muaj qhov muag tsis pom: Tsib - lub ntsej muag lub cev + 3D cov ntaub ntawv tso cai rau kev tso chaw thiab clamping nyob rau hauv ib qho kev taw qhia X / Y / Z. Cov txheej txheem nyuaj tuaj yeem ua tiav welded nyob rau hauv ib qho clamping, txo qhov kev cuam tshuam thib ob.

 Reusable, ntev lifespan: Cam khwb cia hlau + nitriding txheej txheem, hnav-resistant, cuam tshuam-resistant, thiab slag{3}}resistant, nrog rau ib txwm ua hauj lwm lub neej ntawm 10+ xyoo, yuav tsum tsis txhob consumables.

 Kev txo nqi thiab kev txhim kho kev ua tau zoo nrog cov txiaj ntsig zoo tag nrho: Txo cov cuab yeej tsim / tsim khoom / khaws cov nqi, ua kom luv luv, ua kom muaj peev xwm, thiab cov nqi rov qab hauv 2-3 lub hlis.

Yog xav paub ntxiv, thov hu rau -Amy

 Cov ntaub ntawv yooj yim

 Khoom siv: Mainstream yog HT250/HT300 siab -lub zog grey cam khwb cia hlau (los yog Q355 Steel), annealed thiab ib txwm muaj hnub nyoog rau ob chav kev ntxhov siab nyem, ua rau tsawg deformation; high- qauv kawg tau txais kev kho deg nitriding (hardness HV600+), muab kev hnav tsis kam thiab tiv thaiv weld slag adhesion.

 Qhov System Standards (Globally Compatible):

D28 (System28): Qhov txoj kab uas hla φ28mm, qhov sib nrug 100mm (mainstream, hnyav-cov haujlwm / cov haujlwm loj).

D16 (System16): Qhov txoj kab uas hla φ16mm, qhov sib nrug 50mm (lub teeb-lub luag haujlwm / qhov tseeb me me).

Qhov tseeb: Flatness Tsawg dua los yog sib npaug ntawm 0.05mm / m, qhov sib nrug siab ± 0.02mm, rov ua dua ± 0.05mm.

Common Size (Expandable):

1000 × 1000mm, 1200 × 1500mm, 1500 × 2000mm, 2000 × 4000mm, thiab lwm yam.

Tsib sab siv tau: txheem qhov sib npaug sib npaug ntawm cov ntsiav tshuaj thiab plaub sab, txhawb nqa 3D sib dhos (X / Y / Z axes).

 Standard Sizes
