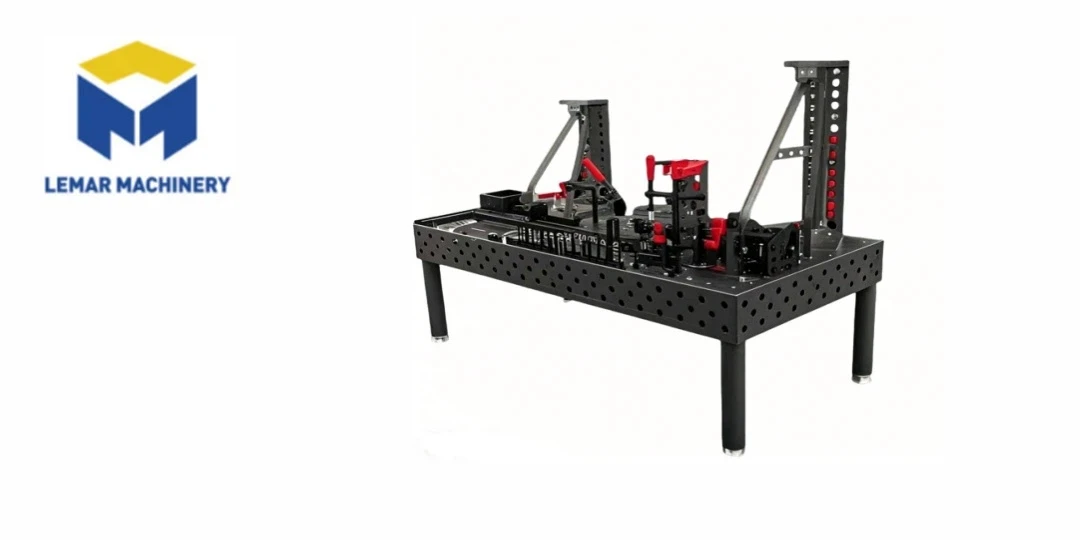

Steel Vuam Teeb Table
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
qhia txog cov khoom
- Workpiece Fixation: Precisely txoj hauj lwm ntawm qhov sib dhos nrog fixtures (clamps, siab daim hlau, V-blocks) los tiv thaiv vuam deformation thiab hloov chaw.
- Precision Assurance: Lub tSteel Vuam Teeb Table flatness tuaj yeem ncav cuag ± 0.03mm, kom ntseeg tau cov vuam sib dhos thiab qhov sib xws.
- Kev Tiv Thaiv Kev Nyab Xeeb: Teeb hluav taws xob- pov thawj, tshav kub- tiv taus, thiab hauv av los tiv thaiv hluav taws xob poob siab, txo qhov kev pheej hmoo ntawm hluav taws kub hauv cov chaw ua haujlwm ntoo.
- Kev txhim kho kev ua tau zoo: Modular qhov chaw tso cai rau ntau lub workpieces, txo lub sij hawm fixture thiab ua kom batch ntau lawm.
Yog xav paub ntxiv, thov hu rau -Amy
Khoom Specifications
Cov ntaub ntawv yooj yim
Khoom siv: Mainstream yog Q355 Steel, annealed thiab ib txwm muaj hnub nyoog rau ob chav kev ntxhov siab nyem, ua rau tsawg deformation; siab- cov qauv kawg tau txais kev kho deg nitriding (hardness HV600+), muab kev hnav tsis kam thiab tiv thaiv weld slag adhesion.
Qhov tshwj xeeb ntawm qhov: D16 (φ16mm, nrug 50mm) haum rau me me rau nruab nrab - qhov loj me; D28 (φ28mm, qhov sib nrug 100mm) haum rau hnyav- lub luag haujlwm fixtures.
Flatness: Precision vuam Tsawg dua lossis sib npaug ntawm 0.03mm / m, zoo tib yam vuam Tsawg dua lossis sib npaug ntawm 0.1mm / m.
Lub peev xwm thauj khoom: Xaiv raws li qhov hnyav ntawm lub workpiece muab faib los ntawm kev nyab xeeb ntawm 1.5.
Grounding Tsim: Yuav tsum suav nrog kev cog lus hauv av kom ntseeg tau tias lub tshuab vuam tshuab ua haujlwm zoo thiab tiv thaiv hluav taws xob poob siab.
| Txhua qhov loj tuaj yeem kho tau | |
| Specifications (LxWxH) | |
| 1000 × 1000 × 200mm | |
| 1000 × 1500 × 200mm | |
| 1000 × 2000 × 200mm | |
| 1000 × 2500 × 200mm | |
| 1200 × 1200 × 200mm | |
| 1200 × 2400 × 200mm | |
| Khoom siv:A, HT300 casting, B, Q355 steel phaj vuam, c, siab hardness steel phaj vuam, d, stainless hlau phaj vuam | |
| Aperture:A=φ{1}} φ28.149mm / φ16.065 -- φ16.149mm. | |
| Qhov sib nrug:100 ± 0.05 hli / 100 ± 0.05 hli | |
| Engraved kab:Cov ntawv sau suab W1=100± 0.05mm / 500± 0.05mm | |
| Flatness:0.1 / 1000 hli | |
| Verticality:0.1 / 200 hli | |
| Nto roughness:Ra 3.2. | |
| Cov kabmob:Txheem hom 6T, ncej hom: 8T. | |
| Hardness:Hardness ntawm lub cev thiab nitriding txheej: HV450-HV630 | |
Peb lub tuam txhab muab cov kev pabcuam uas tsis yog -tus qauv customization. Yog tias koj tsis paub meej qhov loj ntawm Vuam Teeb Table xaiv, koj tuaj yeem tiv tauj Amy thiab xa cov duab ntawm lub workpiece rau kev sib tham dawb. Peb yuav muab cov kev daws teeb meem tsim nyog tshaj plaws raws li qhov tseeb ntawm cov neeg siv khoom.
Txheej txheem khoom
cov khoom siv thev naus laus zis
Khoom subdivision & sab hauv craftsmanship
- Main substrate subdivision
- Muaj version: Q355 qis- alloy siab- lub zog steel, nrog rau hardness ntau dua, cuam tshuam tsis kam, thiab deformation kuj. Nws tuaj yeem tiv taus cov khoom hnyav thiab txuas txuas txuas mus ntev ntev yam tsis muaj deformation. Nws yog qhov kev xaiv zoo tshaj plaws rau lub Hoobkas ntau lawm.
- Txhim kho version: Lub countertop yog nruab nrog ob npaug - txheej txheej cov qauv / kev txhawb nqa mesh sab hauv, thiab hauv qab yog ntxiv nrog cov kav dej ntom ntom horizontally thiab ntsug kom tiv thaiv kev poob rau hauv nruab nrab ntawm lub txee. Steel Welding Table yog tsim rau hnyav-cov haujlwm steel qauv thiab tuab phaj vuam.
Txhawb cov qauv siv tshuab
- Zuag qhia tag nrho txais cov cuab yeej siv vuam tag nrho es tsis txhob siv qhov chaw vuam, muaj zog tag nrho rigidity thiab tsis muaj looseness;
- Hauv qab yog nruab nrog cov hlua txuas ntxiv thiab daim duab peb sab siv lub kaum ntse ntse, uas yog av qeeg resistant thiab torsion resistant. Thaum welding, striking thiab kho workpieces, lawv yuav tsis co los yog deviate.
Cov txheej txheem kho deg & kev ua tau zoo sib txawv
1. Ordinary blackened/painted versionNto los tiv thaiv xeb xim txau, tsuas yog yooj yim los tiv thaiv xeb, yooj yim rau hlawv cov xim thiab tev tawm thaum vuam slag ntog, yooj yim rau cov hlau chips, yooj yim los ntxuav, thiab tus nqi qis tshaj.
2. Zuag qhia tag nrho quenched thiab hardened version
Kev kho mob tag nrho ntawm cov ntsiav tshuaj txhim kho qhov tawv tawv, ua rau nws khawb resistant thiab cuam tshuam resistant, haum rau nquag polishing thiab kho ntawm workpieces.
3. High end core txheej txheem ntawm nitriding kev kho mob
Ib txheej nitride ruaj khov yog tsim rau ntawm qhov chaw, nrog lub hardness ntawm HV600 los yog siab dua, uas tsis yog lo rau vuam slag, txaws pov thawj, acid thiab alkali resistant, thiab xeb resistant;
Polishing, splashing, thiab hlawv yuav tsis ua puas lub countertop, thiab tsuas yog yooj yim so yog xav tau rau kev siv txhua hnub. Nws yog qhov tseem ceeb tshaj plaws -kev xaiv kawg rau cov neeg European thiab Asmeskas cov neeg yuav khoom.
core kom zoo dua
- Ultra siab stability: Thick steel tabletop + nruj ncej, tiv thaiv kev co, tiv thaiv deformation, siab vuam raug.
- Kev kub siab ua haujlwm thiab ua haujlwm ntev: tuaj yeem tiv taus vuam slag ntawm 600-800 degree, lub rooj nitriding tsis lo rau slag thiab yooj yim los ntxuav.
- Kev nyab xeeb hauv av: cov ntaub ntawv xov xwm + hauv av ncej, tshem tawm qhov kev pheej hmoo ntawm hluav taws xob poob siab thiab tiv thaiv lub tshuab vuam thiab cov khoom ua haujlwm.
- Strong universality: Lub qhov matrix tuaj yeem hloov mus rau yuav luag txhua cov duab ua haujlwm, thiab cov khoom siv tau nplua nuj, hloov tau thiab ua haujlwm tau zoo.

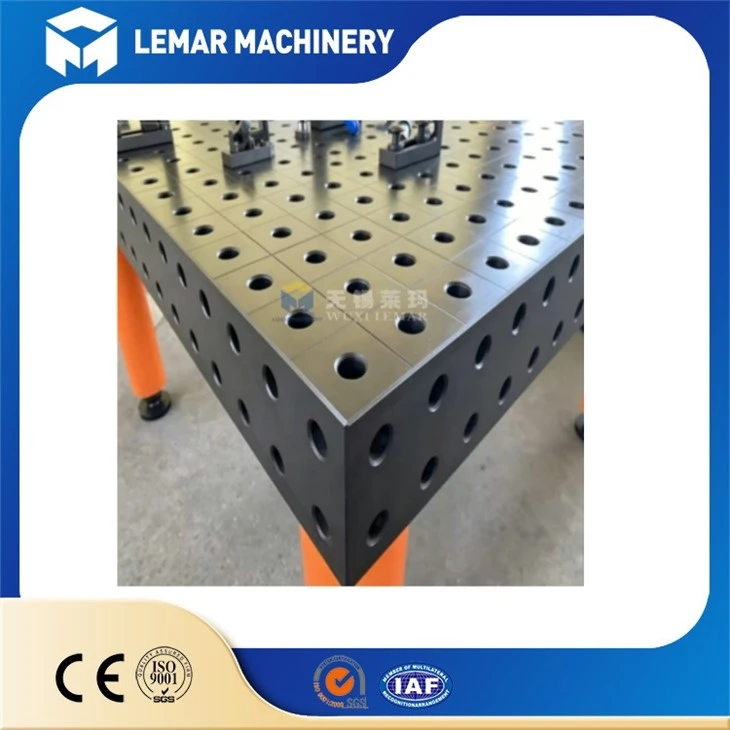

Cov duab tiag tiag
Cmpany pr
LEMAR MACHINERY
Pib hauv zos thiab nthuav dav los pab cov neeg koom tes hauv kev sib koom tes hauv ntau dua 30 lub teb chaws thoob ntiaj teb, qhov no yog peb zaj dab neeg loj hlob:
2005 🏭 Founding Vision: Rooted nyob rau hauv Tuam Tshoj, nplooj siab rau vuam khoom R&D;
2007 🌍 Mus Ntiaj Teb: Pib lub tswv yim thoob ntiaj teb thiab txhim kho cov khoom lag luam mus rau thoob ntiaj teb cov qauv;
2008 ⚙️ Kev Txhim Kho Kom Zoo: Ntxiv 3D vuam platforms thiab lwm cov kab ntau lawm, hloov mus rau hauv cov chaw muab kev daws teeb meem;
2015 ✅ Daim Ntawv Pov Thawj Zoo: Tau txais daim ntawv pov thawj CE / GS thiab nkag mus rau qib siab -kawg European thiab Asmeskas kev lag luam;
Niaj hnub no 🌟, peb tau nthuav tawm thoob ntiaj teb, ua haujlwm siab -kawg kev lag luam xws li tsheb, lub zog cua, thiab kev tsim nkoj, tau txais kev ntseeg siab ntawm cov neeg siv khoom thoob ntiaj teb nrog peb cov kws tshaj lij.
Daim ntawv pov thawj ntawm cov khoom zoo
FAQ
Q1: Lub flatness kam rau ua yog dab tsi?
A: Peb tus qauv flatness yog ± 0.03mm ib 'meter'. Kev tswj xyuas nruj kom ntseeg tau tias siab - qhov tseeb qhov chaw, tsis txhob vuam deformation thiab qhov yuam kev loj.
Q2: Lub rooj puas tuaj yeem tiv taus vuam slag thiab kub kub?
A: Yog. Lub hauv paus steel yog kub resistant. Nitrided nto tuaj yeem tiv taus vuam spatter, tsis yooj yim rau lo slag, yooj yim los ntxuav thiab ua haujlwm ntev.
Q3: Puas yog lub rooj sib dhos ua haujlwm rau vuam ua haujlwm?
A: Yog lawm. Tag nrho cov hlau sib xyaw ua ke kom ntseeg tau zoo conductivity. Txhua lub rooj yog nruab nrog lub qhov tshwj xeeb hauv av, ruaj khov vuam tam sim no, muaj kev nyab xeeb thiab yooj yim rau kev siv vuam txhua hnub.
Q4: Koj puas txhawb kev tsim qauv?
A: Kev pabcuam kev cai yog muaj, suav nrog kev cai loj, rooj tuab, ceg siab, tsim mobile caster, tiv thaiv- plam ko taw, pleev xim tshwj xeeb thiab luam ntawv logo.
Q5: Cov nqe lus them nqi twg koj txais?
A: Peb lees txais TT, LC, PayPal thiab lwm yam kev them nqi hloov pauv. Kev lees paub kev lag luam tau txais kev txhawb nqa rau tus neeg yuav khoom kev nyab xeeb.
Q6: Yuav ua li cas txog qhov ntim thiab xa khoom?
A: Export txheem ntim nrog ntoo pallet, stretch zaj duab xis thiab kaum kev tiv thaiv. Tiv thaiv kom tsis txhob deformation, khawb thiab puas thaum lub sijhawm thauj mus los hauv hiav txwv ntev.
Q7: Koj qhov kev pab cuam tom qab muag yog dab tsi?
A: 12 lub hlis lav rau lub ntsiab ncej. Muab kev hloov pauv dawb rau cov khoom puas uas tsis yog - tib neeg. Peb muab kev pab cuam lub neej thiab cov khoom siv ntxiv.
Yog hais tias koj xav nyob rau hauv peb Steel Vuam Teeb Table los yog xav tau ib tug customized kev daws teeb meem, thov koj xav tiv tauj peb rau ib tug quote thiab cov ncauj lus kom ntxaws catalog.
