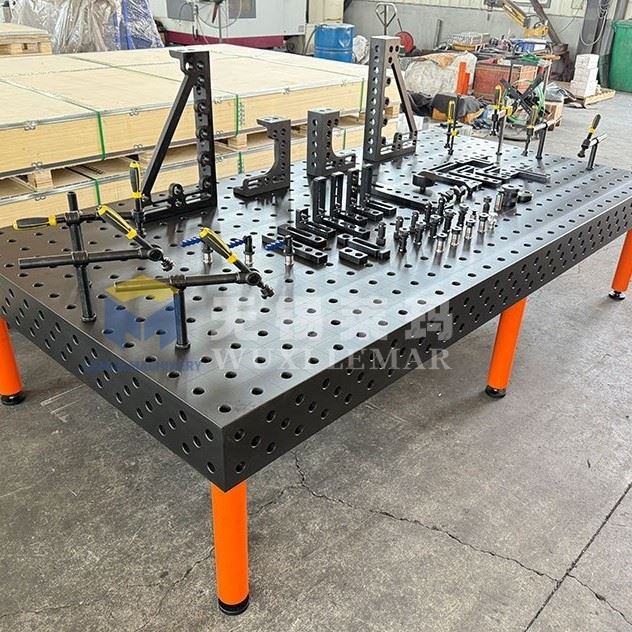

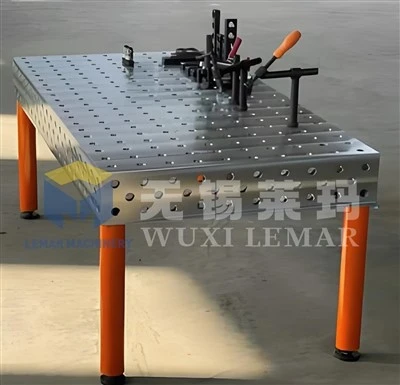

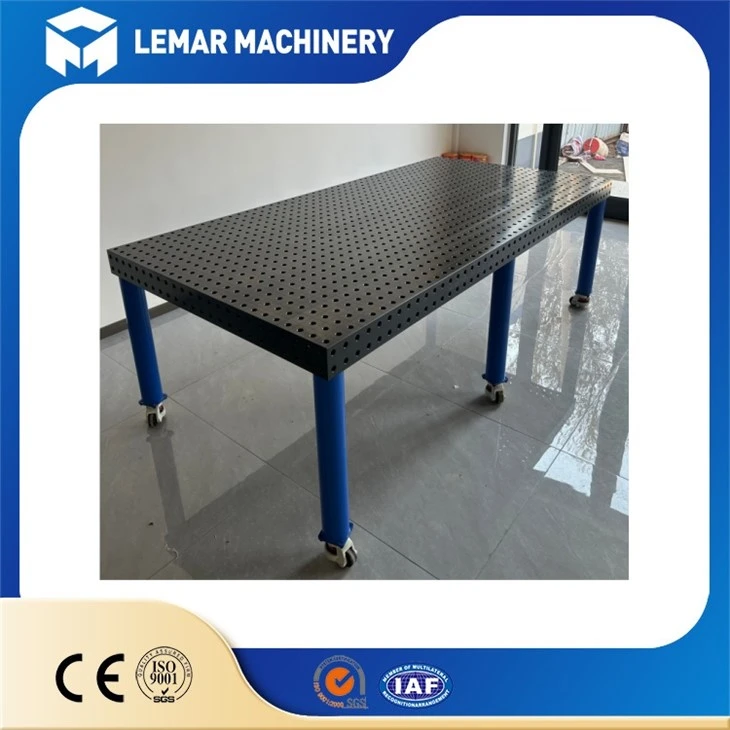

Efficient Vuam Rooj
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
qhia txog cov khoom
|
|
Lub Rooj Vuam Ua Tau Zoo yog ib qho qauv, siab -precision, thiab hloov tau yooj yim vuam fixture system tsim tshwj xeeb rau vuam scenarios. Nws cov txiaj ntsig tseem ceeb nyob hauv kev txo qis lub sijhawm hloov pauv, txhim kho vuam raug thiab ua haujlwm tau zoo, thiab txo cov nqi tag nrho. Nws yog ib qho tseem ceeb ntawm cov khoom siv rau ntau- ntau yam, me-batch, thiab siab- vuam ntau lawm.
Loj lag luam nplai
dav siv technology
siab -cov kev pabcuam zoo
Khoom Series
D16 series
Qhov taub: φ16.065–φ16.149 mm
Grid Pitch: 50 × 50 hli (± 0.05 hli)
Rooj Thickness: 14-17 mm
Load Capacity: Txheem 2T, Ncej 5T
Flatness: 0.1 hli / m
Daim Ntawv Thov: Cov khoom me me, cov ntawv hlau, ntau- ntau yam me me
D28 series
Qhov taub: φ28.065–φ28.149 mm
Grid Pitch: 100 × 100 hli (± 0.05 hli)
Rooj Thickness: 23-27 mm
Load Capacity: Txheem 2-5T, Hnyav 10T +
Flatness: 0.1 hli / m
Daim ntawv thov: Cov khoom siv hnyav, cov khoom siv loj, cov neeg hlau vuam kab
| Dimensions (ntev × dav) | Countertop khoom | Ua tiav nto |
| 1000 × 1200mm | HT300/Q355 | 5 nto (Precision machining) |
| 1000 × 1500mm | HT300/Q355 | 5 nto (Precision machining) |
| 1000 × 2000mm | HT300/Q355 | 5 nto (Precision machining) |
| 1200 × 2000mm | HT300/Q355 | 5 nto (Precision machining) |
| 1200 × 2400 hli | HT300/Q355 | 5 nto (Precision machining) |
| 1200 × 3000mm | HT300/Q355 | 5 nto (Precision machining) |
| 2000 × 2400 hli | HT300/Q355 | 5 nto (Precision machining) |
| 1500 × 2000mm | HT300/Q355 | 5 nto (Precision machining) |
| 1500 × 2400 hli | HT300/Q355 | 5 nto (Precision machining) |
| 1500 × 3000mm | HT300/Q355 | 5 nto (Precision machining) |
| 2000 × 2400 hli | HT300/Q355 | 5 nto (Precision machining) |
| 2000 × 3000mm | HT300/Q355 | 5 nto (Precision machining) |
| 2400 × 3000 hli | HT300/Q355 | 5 nto (Precision machining) |
| 4000 × 2000mm | HT300/Q355 | 5 nto (Precision machining) |
Cov khoom video
Core qauv thiab muaj pes tsawg leeg
Basic Platform (Tabletop)
Khoom siv: High - lub zog cam khwb cia hlau (HT200 / HT250) los yog Q355 steel phaj, siab rigidity, kev co kuj, thiab hnav tsis kam.
Nto: Npog nrog cov qauv qhov chaw (φ28mm, thiab lwm yam) los yog T-slots, qhov sib nrug / qhov sib nrug ntawm 50/100mm (tus qauv kev lag luam), tsim cov kab sib koom ua ke.
Qhov tseeb: Flatness Tsawg dua lossis sib npaug ntawm 0.05mm / m, qhov system rov ua haujlwm ± 0.01 ~ 0.05mm.
Specifications: Qhov ntau thiab tsawg 1000 × 2000, 1500 × 3000, 2000 × 4000mm, expandable los ntawm splicing ntau units.
Functional Fixture Module (Core Cheebtsam)
Positioning: Positioning pins, positioning blocks, angle rulers, square boxes, reference blocks.
Clamping: ceev clamps, ntsia hlau clamps, thawb-rub clamps, ceev xauv pins.
Kev them nyiaj yug Cheebtsam: Adjustable txhawb ko taw, V-blocks, qaij txhawb nqa, extension caj npab.
Cov khoom siv pabcuam: Teb worktable, tilting mechanism, sib nqus clamps, lub tshuab nqus tsev nqus khob.
Tag nrho cov modules muaj cov qauv kev sib txuas, tso cai rau kev teeb tsa sai, sib dhos, thiab disassembly ntawm txhua txoj haujlwm ntawm lub rooj ua haujlwm.
Core zoo
1. High Precision, ruaj khov (Core Quality)
- Precise Positioning: Qhov chaw qhov yuam kev tsawg dua lossis sib npaug li 0.05mm, ua kom ruaj khov workpiece qhov ntev thiab geometric kam rau ua.
- Kev Tiv Thaiv Deformation: Rigid rooj + ntau- taw tes clamping txo qhov vuam thermal deformation, txo tus nqi tsis zoo los ntawm 20%+.
- Consistent Welds: Tsau workpiece posture ua kom yooj yim vuam / nkoj - zoo li vuam, txhim kho weld uniformity thiab lub zog.
2. Kev txo nqi, txhim kho kev ua tau zoo, rov qab siab (Core Economics)
- Cov Nqi Them Nqi: Txo kev nqis peev hauv cov khoom siv tshwj xeeb los ntawm 60%+, tshem tawm qhov xav tau loj - teev cia ntawm cov cuab yeej tshwj xeeb.
- Kev Ua Haujlwm Ntau Lawm: Vuam efficiency nce 30% -50%, nce txhua xyoo muaj peev xwm ntawm ib kab ntau lawm los ntawm 1.5 npaug.
- Ntev -Lub Sij Hawm Reusability: Cov qauv qauv yog qhov ruaj khov thiab rov siv tau dua, nrog rau lub neej siv tus nqi qis dua li cov cuab yeej tshwj xeeb.
Kev tiv thaiv ib puag ncig thiab rhiav kev sib raug zoo
Tau tshaj automation thiab yoog rau ntse manufacturin
- 3D Vuam Table rau Kev Tsim Khoom Siab tuaj yeem ua ke ncaj qha nrog vuam robots, positioners, thiab tilting ntxhuav los tsim cov tshuab vuam tshuab.
- 3D Welding Table rau Kev Tsim Nyog Muaj Peev Xwm txhawb kev koom ua ke nrog CAD / CAM / PLM, ua kom cov cuab yeej siv virtual tsim, simulation, thiab kev tswj hwm digital.
- Nws yog tsim rau 24/7 tas mus li ntau lawm, txo kev cia siab ntawm phau ntawv ua haujlwm.
Durable thiab yooj yim los tswj
- Cov cam khwb cia hlau yog qhov cuam tshuam -tiv taus thiab slag- tiv taus, nrog rau kev kho saum npoo nrog rau nitriding / quenching rau hnav tsis kam thiab tiv thaiv xeb.
- Cov qauv tsim qauv yog tus qauv, ua kom yooj yim los ntxuav, hloov, thiab calibrate, uas ua rau cov nqi tu qis.
Ntim thiab Logistics
Tiv thaiv xeb: Nto xeb-cov roj tiv thaiv + xeb-cov hnab tiv thaiv
Haum rau kev sib sau ua ke, zoo tagnrho rau kev thauj khoom hiav txwv
Muab nrog: Daim ntawv teev npe, daim ntawv pov thawj ntawm keeb kwm, daim ntawv pov thawj CE, daim ntawv pov thawj zoo
