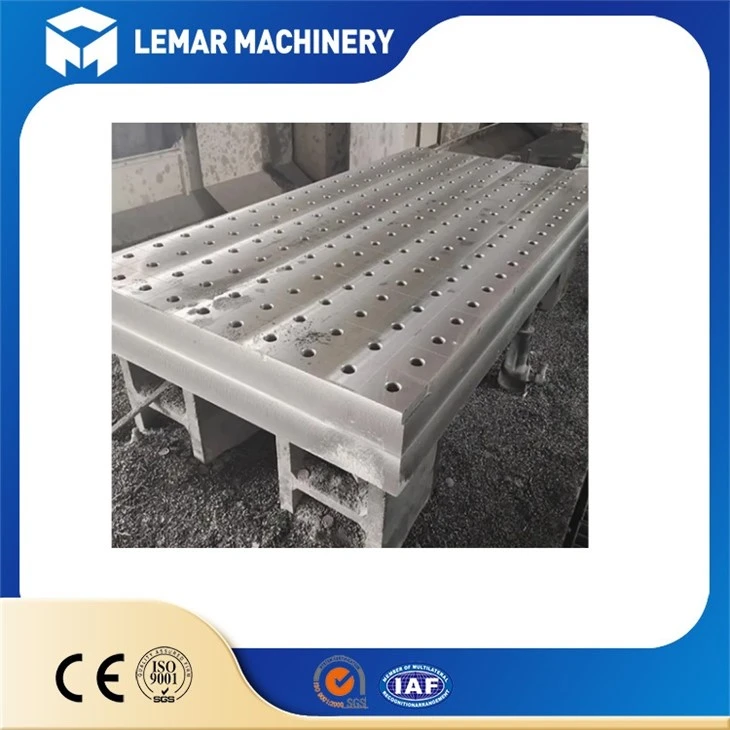

Vuam Rooj System
Application: Vuam & Sib dhos
Txheej Txheem: CNC Machining
Kev kho deg: Ib txwm / Nitrided
Qauv: 3D
Hom Lub Npe: Lemar
qhia txog cov khoom
|
|
Welding Table System yog ib qho yooj yim thiab ntse yooj yim cov cuab yeej rau kev siv vuam niaj hnub. Nrog precision qhov system + ceev xauv + modularity raws li nws cov tub ntxhais, nws daws qhov mob cov ntsiab lus ntawm cov tsoos vuam fixtures uas yog "mob siab, tsis muaj txiaj ntsig thiab tus nqi siab", thiab ua tiav kev hloov pauv sai, siab precision, siab reusability thiab qis nqi. Nws yog qhov kev daws teeb meem zoo tshaj plaws rau ntau- ntau yam, me me -batch thiab customized vuam ntau lawm.
Loj lag luam nplai
dav siv technology
siab -cov kev pabcuam zoo

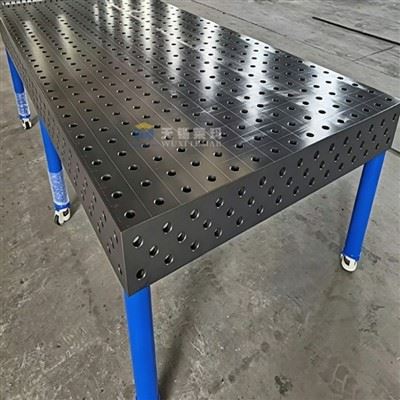

Khoom Series
D16 series
Qhov taub: φ16.065–φ16.149 mm
Grid Pitch: 50 × 50 hli (± 0.05 hli)
Rooj Thickness: 14-17 mm
Load Capacity: Txheem 2T, Ncej 5T
Flatness: 0.1 hli / m
Daim Ntawv Thov: Cov khoom me me, cov ntawv hlau, ntau- ntau yam me me
D28 series
Qhov taub: φ28.065–φ28.149 mm
Grid Pitch: 100 × 100 hli (± 0.05 hli)
Rooj Thickness: 23-27 mm
Load Capacity: Txheem 2-5T, Hnyav 10T +
Flatness: 0.1 hli / m
Daim ntawv thov: Cov khoom siv hnyav, cov khoom siv loj, cov neeg hlau vuam kab
| Dimensions (ntev × dav) | Countertop khoom | Ua tiav nto |
| 1000 × 1200 hli | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1000 × 1500mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1000 × 2000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1200 × 2000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1200 × 2400 hli | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1200 × 3000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 2000 × 2400mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1500 × 2000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1500 × 2400 hli | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 1500 × 3000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 2000 × 2400mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 2000 × 3000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 2400 × 3000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
| 4000 × 2000mm | HT300 cam khwb cia hlau / Q355 steel daim | 5 nto (1 sab saum toj nto + 4 sab saum toj) |
Cov khoom video

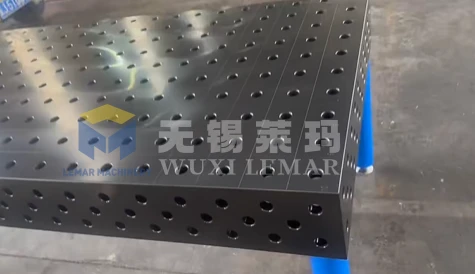

Tsim qauv thiab ruaj khov
- Tag nrho cov qauv
Lub hauv qab ntawm qhov chaw ua haujlwm tau txais kev txhawb nqa rib qauv / lub thawv- hom tsim, uas yog nruj heev.
Nws tsis tshua muaj deform lossis vibrate thaum vuam / hnyav.
Tag nrho cov qauv tau dhau los kho kev ntxhov siab, kom tsis txhob poob qhov tseeb ntawm lub sijhawm ntev.
- Kev hloov kho qib
Hauv qab yog nruab nrog kev txhawb nqa ko taw / thauj tog rau nkoj bolts.
Nws tuaj yeem hloov kho sai sai rau hauv av tsis sib xws.
Xyuas kom tag nrho cov theem thiab stability ntawm lub workbench.
- Load faib
Muab cov khoom sib npaug sib npaug, thiab lub zog hnyav hauv zos tsis ua kom tawg.
Qhov loj - lub platform loj tuaj yeem muab faib ua ntau ntu, kom ntseeg tau tias muaj zog sib faib tag nrho.
Kev nyab xeeb thiab humanized tsim
Anti-slag tsim
Lub countertop muaj siab hardness, ua rau slag tsis tshua lo
Nws ntog yooj yim thaum lub khob, yooj yim ntxuav
Txo kev sib tsoo thiab tu lub sijhawm
Ntug kev kho mob
Ntug chamfering / rounding kho ntawm lub countertop
Muaj kev nyab xeeb rau kev khiav lag luam yam tsis muaj kev txiav
Ua haujlwm yooj yim dua
Ceev-lock mechanism tsis xav tau ib tug ciaj ntswj lossis rauj
Txo cov neeg ua haujlwm qaug zog thiab txo qhov kev pheej hmoo ntawm kev raug mob hauv chaw ua haujlwm
Tiv thaiv nplaim taws thiab txaws
Compact qauv, txo qhov nkag ntawm sparks rau sab hauv
Extens lub neej ntev ntawm lub qhov thiab xauv pins
Kev tiv thaiv ib puag ncig thiab rhiav kev sib raug zoo
Kev siv qhov chaw siab
- Modular ua ke, txuag thaj chaw rhiav
- Ib los yog ntau tshaj ob peb txheej ntawm cov tsoos fixtures, txo cov khoom muag chaw ua hauj lwm
Ntim thiab thauj
Export ntim thiab kev thauj mus los lav
Moisture-pov thawj zaj duab xis + ua npuas ncauj + plywood ntoo thawv
Haum rau kev thauj mus los ntev - hiav txwv / av
2. Kho txoj kev
Lub platform thiab modules tau ruaj khov rau hauv lub thawv, tsis muaj kev sib tsoo lossis sib tsoo
3. Kev thauj mus los yooj yim
Standard specifications yuav ncaj qha loaded rau hauv ntim
Lub platform loj tuaj yeem disassembled rau kev thauj mus los thiab tom qab ntawd sib sau ua ke ntawm qhov chaw
Hais txog peb
vim li cas xaiv peb
WUXI LEMAR MACHINERY EQUIPMENTS CO., LTD
vim li cas thiaj xaiv peb cov khoom
Craftsmanship tsim kom zoo, innovation coj manufacturing. Peb ib txwm tau mob siab rau muab cov cuab yeej siv tau zoo, ruaj khov thiab cov cuab yeej siv vuam zoo rau cov neeg siv khoom thoob ntiaj teb. Nrog rau tus cwj pwm zoo, peb txuas ntxiv kho qhov Vuam Rooj System. Los ntawm nws cov qauv tsim qauv, cov qauv xauv nrawm thiab siab - qhov tseeb qhov chaw, qhov system no muaj kev paub siv cuab yeej siv tau zoo dua rau ntau- ntau yam thiab me-batch ntau lawm, pab cov lag luam txhim kho kev ua tau zoo, ua kom zoo thiab txo cov nqi.
Peb txaus siab ua haujlwm nrog txhua tus neeg koom tes nrog cov khoom lag luam txhim khu kev qha thiab kev pabcuam siab dawb. Cia 3D Quick Lock Weld Table System los ua ib tus neeg ntseeg siab ntawm txoj hauv kev ntawm kev tsim khoom ntse, thiab sib koom ua ke mus rau qhov siab dua - kev tsim khoom zoo yav tom ntej.
Cim npe nrov: Tuam Tshoj Weld Table System manufacturers, lwm tus neeg, Hoobkas
