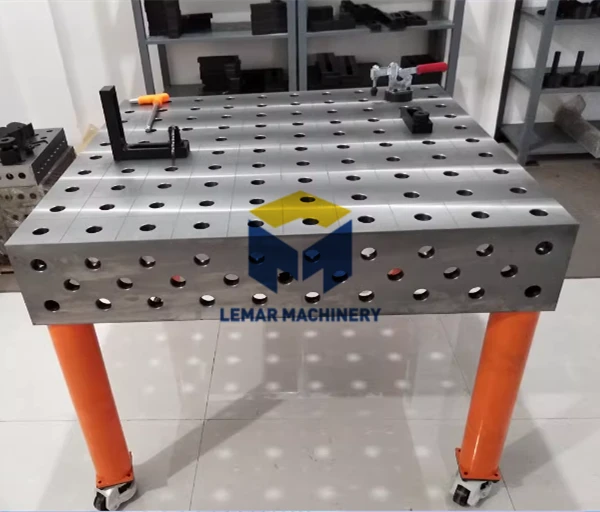

Yuav ua li cas txiav txim siab yog tias 3D Welding Workbench xav tau calibration?

I. Calibration Triggering Conditions

1. Kev txheeb xyuas qhov tseeb
* Use a dial indicator to check the flatness of the working surface. If the deviation is >0.10/1000mm (>0.15/1000mm rau hnyav- lub luag hauj lwm platforms), yuav tsum tau calibration tam sim ntawd.
* Yog hais tias lub qhov chaw qhov yuam kev tshaj ± 0.05mm, lub positioning pins yuav tsum tau kho los yog lub qhov system recalibrated.

2. Kev hloov pauv hauv kev ua haujlwm ib puag ncig
* The workbench must be calibrated after transportation, severe vibration, or sudden temperature changes (>30℃kub sib txawv).
* Preventive calibration is required after use in high humidity environments (>80% RH) rau ntau tshaj 3 lub hlis.



II. Functional Verification

1. Load Test
* After loading 1.5 times the rated load, the deformation... >0.02mm yuav tsum tau calibration (xws li, 3-tuj load xeem ntawm 2-tuj platform).
o In repeated positioning tests, workpiece offset >± 0.1mm qhia qhov tseeb tsis ua haujlwm.

2. Welding Quality Correlation
o Thaum weld qhov ntev tsis tu ncua dhau qhov ua tau zoo (piv txwv li, vuam ceg ntev <80% ntawm cov khoom siv hauv paus thickness), cov ntaub ntawv siv ntawm qhov chaw yuav tsum tau kuaj xyuas.
o Kev tsis zoo ntawm cov neeg hlau vuam txoj hauv kev (xws li, trajectory offset> 0.5mm) tuaj yeem tshwm sim los ntawm kev sib koom ua ke ntawm lub platform misalignment.



III. Cov lus qhia txog kev tswj xyuas lub sijhawm

 Lub voj voog tsis tu ncua: Calibrate txhua 12 lub hlis; luv rau 6 lub hlis rau cov khoom hnyav.

 Dynamic Adjustment: Yog tias qhov sib txawv ntawm ob qhov sib law liag sib law liag yog<0.05mm, it can be extended to 24 months.
